Description

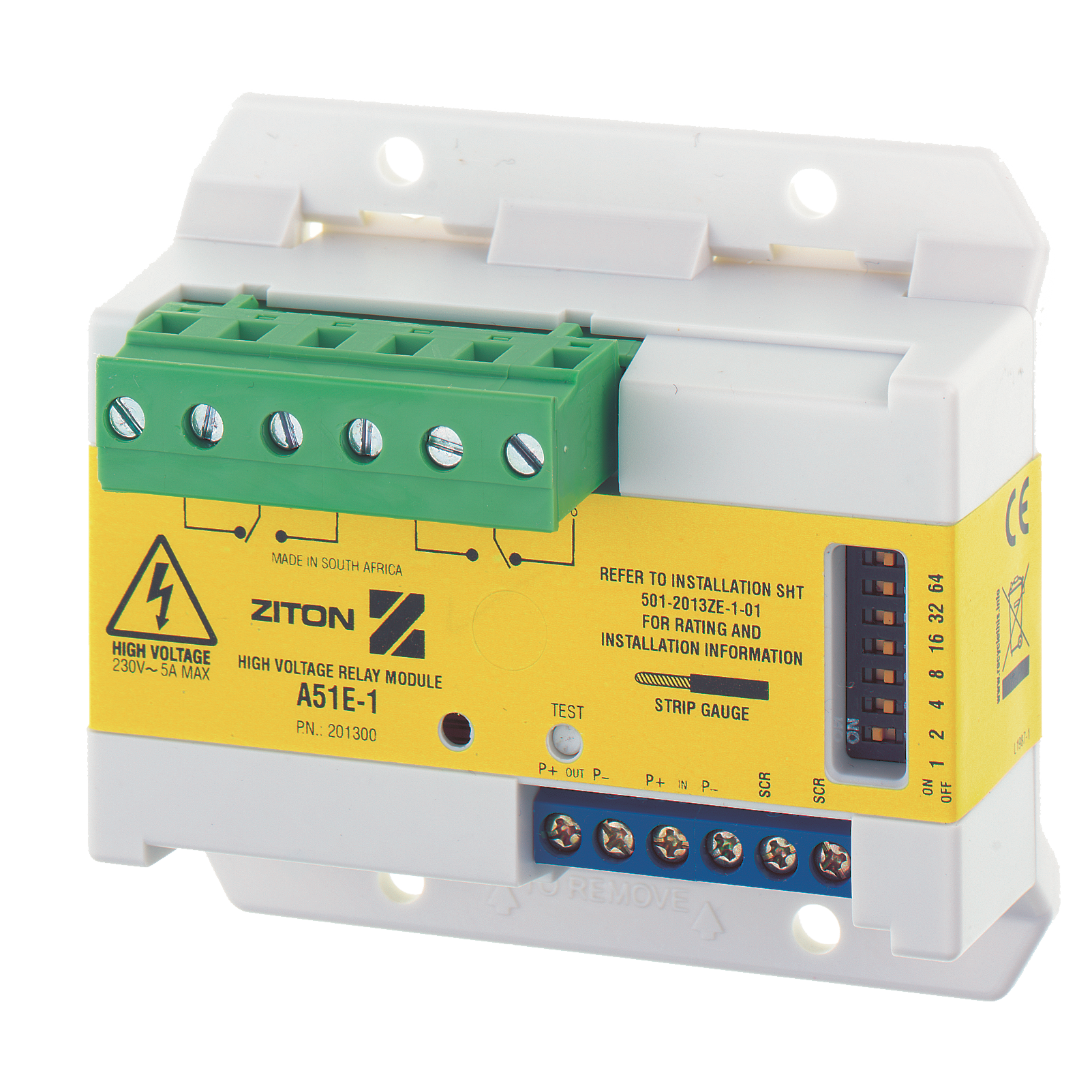

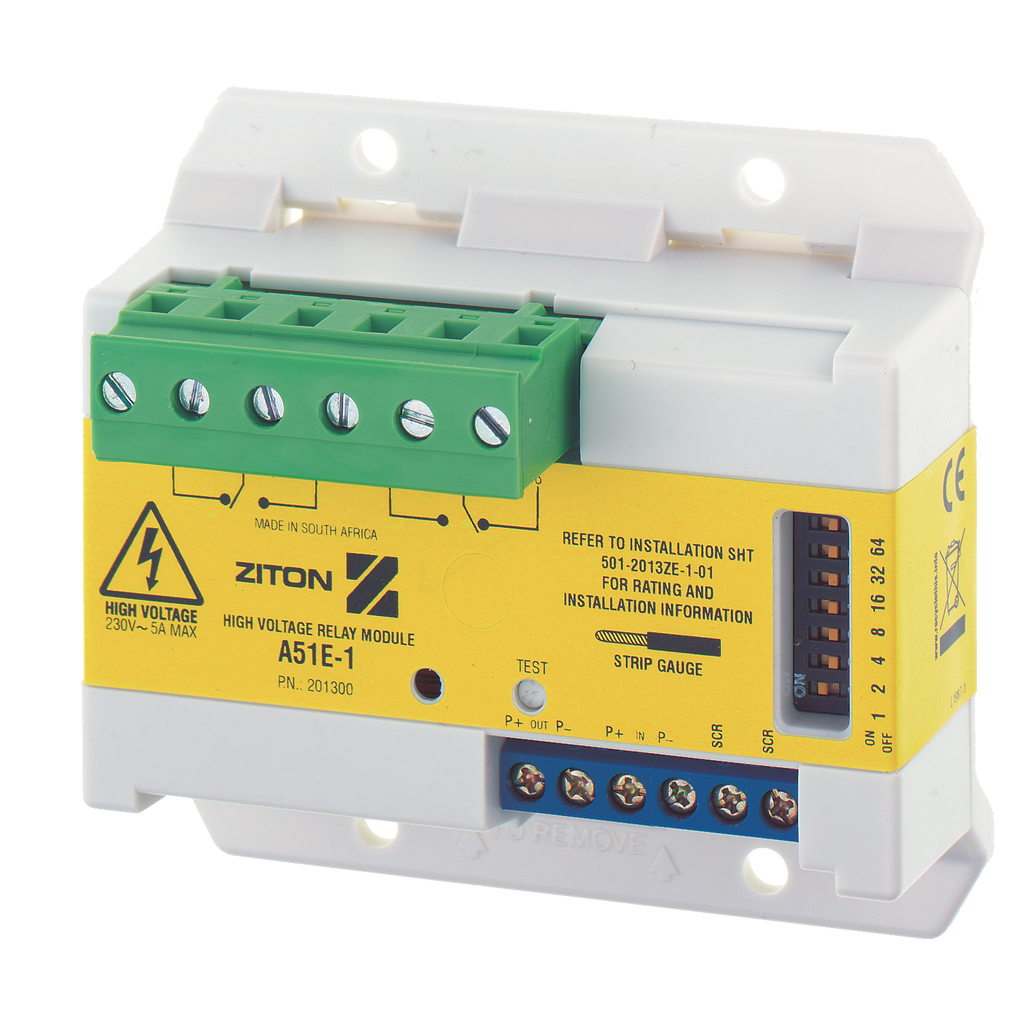

A51E-1 high voltage relay
- Addressable mains rated unit
- Miniature size
- DIN35 mounting rail fixing
- Loop wired - adjacent or internal to equipment to be switched
- Operated from any combination of input addresses
ZP Loop interface providing two VFCO (Relay) outputs for activation or shutdown of mains voltage equipment
Provides Common, Normally closed and Normally open terminals rated 5A @ 250V AC, 1A @ 60V DC
DIN Rail mounting - can be used with interface enclosures SMB-DIN1 and SMB-DIN2
EN54 part 18 approved and CPD certified
LED status indicator - Red when active
Dimensions (mm): 85w x 80h x 42d
