Description

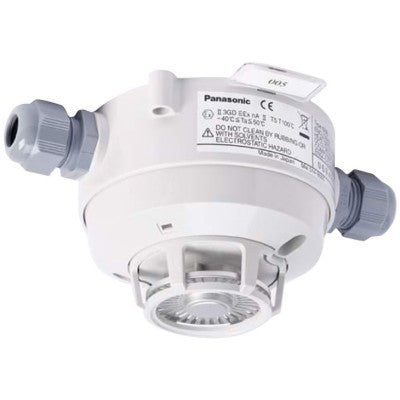

Conventional IS heat detector weatherproof 72oC
Enclosed Conventional Heat Detector, Weatherproof IP67, 72°C, Class BS
- State of the art detector for highest safety
- Waterproof (IP67) for outdoor use or in humid areas
- High temperature range for difficult environments
- Fixed temperature alarm level
Special application heat detector for use indoors or outdoors and hazardous environments
ATEX approval classification: II 3 G Ex ic IIC T5 Gc, II 3 D Ex ic IIIC T100oC Dc -40oC ?Ta?50oC
Approved to EN54 part 5 Class BS, 72oC static response temperature
Ingress Protection: IP67 (suitable for outdoor use)
Current consumption: Quiescent 0mA, Alarm 6-40mA
Compatible with ZP1, ZP1-X3E conventional panels and ZP2 A70E-2 Conventional interface
Dimensions (mm): 100 Dia x 75h
