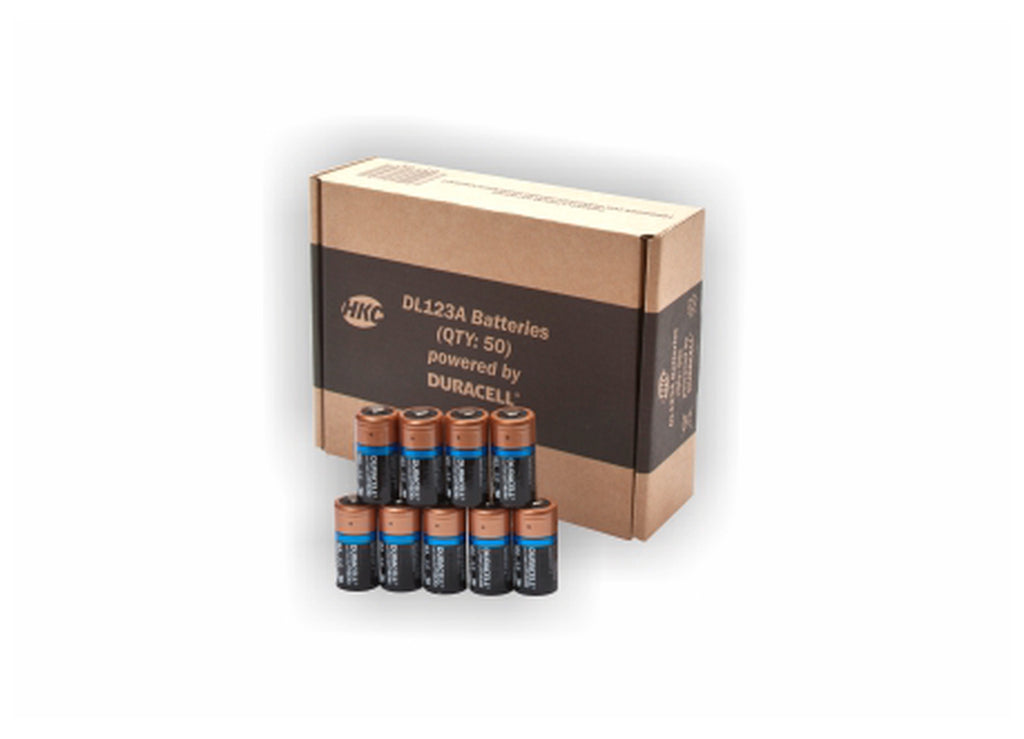

DL123A P2 is a lithium/manganese dioxide battery. This is a high-voltage response, stable during most of the lifetime of the application. Designed to meet all major quality, safety, and environment standards safety: IEC 60086-4, transport: UN 38.3, quality: ISO 9001, duracell world-class continuous program. Application includes cameras, security devices (sensors, monitoring cameras), smoke detectors, wireless sensors, door locks, pet training collars, high intensity flashlights, and laser sights. Key Features Industry highest cell capacity and high energy, reliable performance Low self-discharge with long operating life (1% after 1 year of storage at +20°C) Excellent resistance to corrosion Wide operating temperature range from -20°C to +75°C Nominal capacity (100 ohm cont., 2V cut-off) is 1550mAh Typical voltage range from 3.2 to 3.3V (at + 20°C), standard continuous discharge current is 20mA Maximum continuous discharge current is 60mA, maximum abnormal charge current is 25mA Nominal energy is 4.65Wh, AC impedance at 1KHz is 250mohm
