HAES Fire Alarm Panels: AlarmSense, Esento, Esprit and AOV
HAES Technologies is a family run British manufacturer of fire alarm control equipment, established in 1973 and building its panels at a purpose designed UK facility. Its conventional line is the Esento family: Eclipse in two and four zone versions, Excel in two to twelve zones with conventional or twin wire operation, and Evoque in sixteen, twenty four and thirty two zone builds for larger sites. Marine approved Esento panels are offered in two, four, eight and twelve zone versions, along with matching repeaters and LCD remote display units.
For two wire installations HAES makes the AlarmSense and AlarmSense PLUS panels, such as the AlarmSense PLUS 4 zone HAES fire panel (ASP-4), in two, four, eight and twelve zone versions with repeaters and network communication cards. Addressable work is handled by the Esprit range, available in one to two and one to four loop panels for both Apollo and Argus protocols, with repeater panels, loop cards and network cards. Esprit-G covers automatic extinguishant release for single and dual areas, supported by remote status units and hold off and abort buttons in metal enclosures.

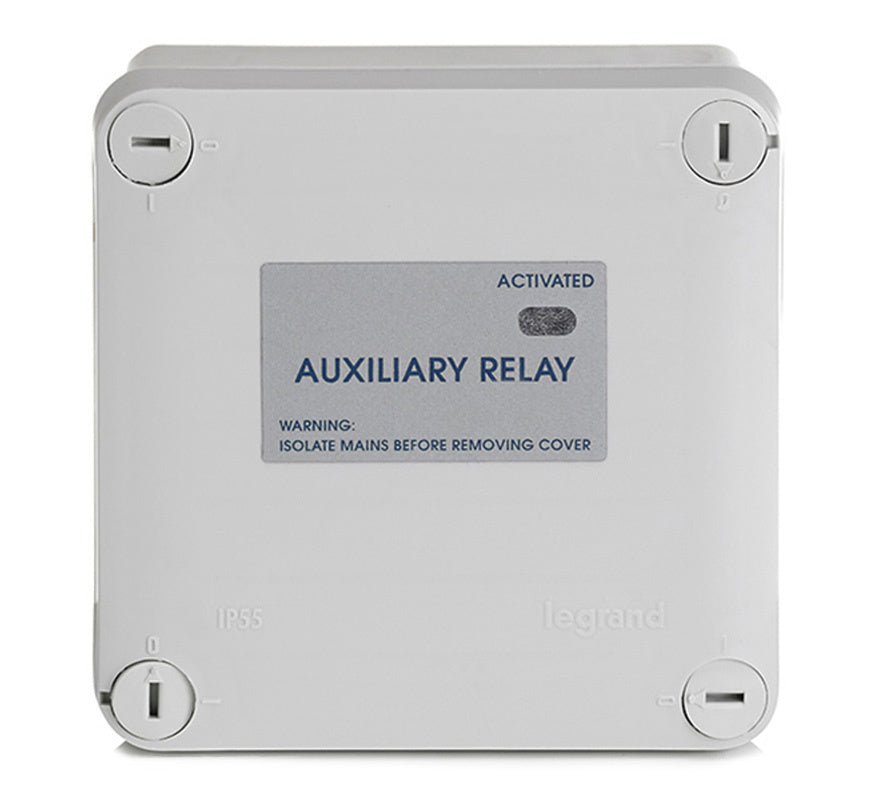

The catalogue also takes in SZAOV and MZAOV automatic opening vent control panels with zone, PIR, rain sensor and BMS cards, EN 54 rated power supplies from 1.5A to 10A, battery enclosures, and boxed and card mounted relays, timers and isolator switches. We supply the HAES range alongside our wider choice of fire alarm panels to fire alarm installers across the UK, including panel spares, keys, bezels and programming leads.
HAES fire alarm panel range overview
Every HAES fire panel we list, grouped by range. Click a part number for full specifications.
| HAES range | Size | Panels |
|---|---|---|
| AlarmSense PLUS (2-wire) | 4, 8, 12 zones | ASP-4, ASP-8, ASP-12; repeater ASP-R-12; extension TPCA07 |
| AlarmSense (2-wire) | 2, 4 zones | ALS-2, ALS-4 |
| Esento Eclipse (conventional / twin wire) | 2, 4 zones | ECL-2, ECL-4 |

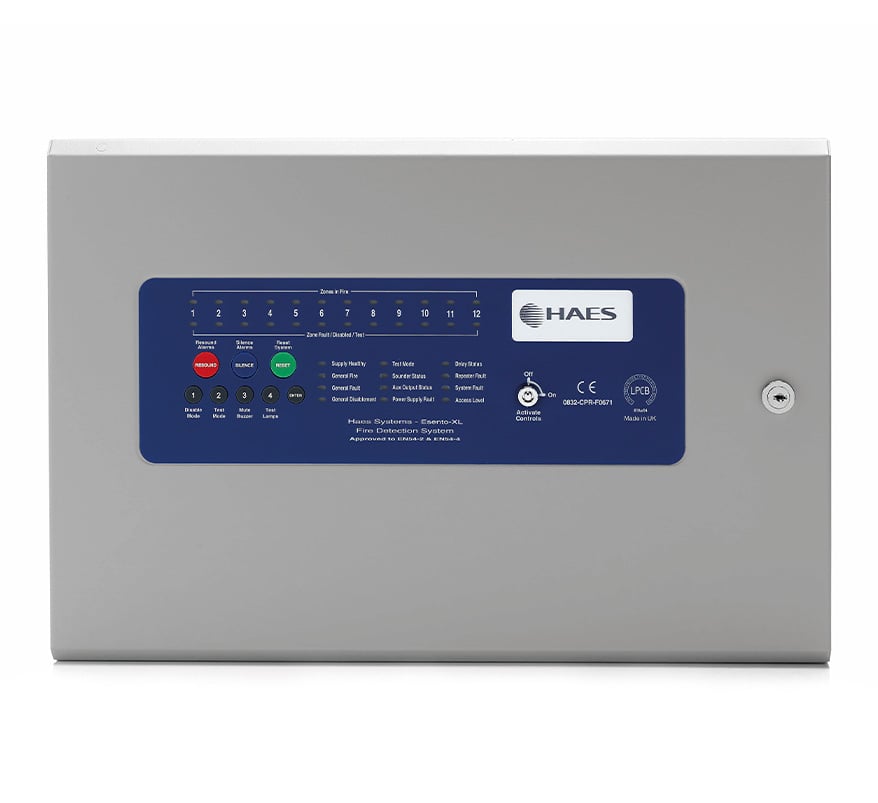

| Esento Excel (conventional / twin wire) | 2 to 12 zones | XLEN-2, XLEN-4, XLEN-6, XLEN-8, XLEN-12; repeater XLEN-R-12; LCD display XL-RDU |
| Esento Evoque (conventional) | 16, 24, 32 zones | XL32-16, XL32-24, XL32-32 |
| Esento Marine (conventional) | 2, 4, 8, 12 zones | ESEN-2MAR, ESEN-4MAR, ESEN-8MAR, ESEN-12MAR; repeater ESEN-R-12MAR |
| Esprit (addressable) | 1-2 and 1-4 loops | Argus: ESA-1001, ESA-1002; Apollo: ESA-1006, ESA-1007; repeater ESA-2001 |
| Esprit-G (extinguishant release) | Single / dual area | ESG-1001, ESG-1002, ESG-1003 |
| AOV control panels | Single / multizone | SZAOV-1001, MZAOV-1001A, MZAOV-1001, MZAOV-1002, MZAOV-1003; see also AOV control panels |
Which HAES fire panel do I need?
- 2-wire AlarmSense devices: choose AlarmSense PLUS (ASP) if you need repeaters or future expansion to 12 zones; the ALS-2 and ALS-4 do not support repeater panels.
- Conventional detectors: Eclipse for 2 or 4 zones, Excel for 2 to 12 zones, Evoque for 16 to 32 zones. Eclipse and Excel can also run twin wire.
- Addressable systems: Esprit panels in 1-2 or 1-4 loop versions, for either the Apollo or the Argus protocol.
- Ships and offshore: the marine approved Esento panels.
HAES fire panel FAQs
What types of HAES fire alarm panel are there?
Conventional panels in the Esento family (Eclipse, Excel and Evoque), two wire AlarmSense and AlarmSense PLUS panels, and addressable Esprit panels for the Apollo and Argus protocols, plus Esprit-G for extinguishant release.
Is HAES a UK manufacturer?
Yes. HAES Technologies is a family run British manufacturer of fire alarm control equipment, established in 1973.
Do you stock HAES spares?
Yes, alongside the panels we supply HAES panel spares, keys, bezels and programming leads.
Do you sell the HAES AlarmSense PLUS ASP-4?
Yes. The HAES ASP-4 is a 4 zone AlarmSense PLUS panel, expandable to 12 zones, with 8 and 12 zone versions (ASP-8, ASP-12) also listed.
