HAES Esento 8 Way Output Extension Card (OPCARD-8)
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
- 8 x volt-free changeover relay outputs plus 8 x switched -ve outputs
- Outputs set to operate common or zonal via DIL switch
- Outputs can be programmed to cancel on RESET or SILENCE ALARMS
- Up to 4 cards can be fitted and linked by ribbon cable (up to four inside the Excel-32)
- Fits inside the control panel; piggy-backs on the main PCB in 2–12 zone panels
- 28 V output available for driving additional relays from the switched -ve outputs
Frequently bought together
Product details

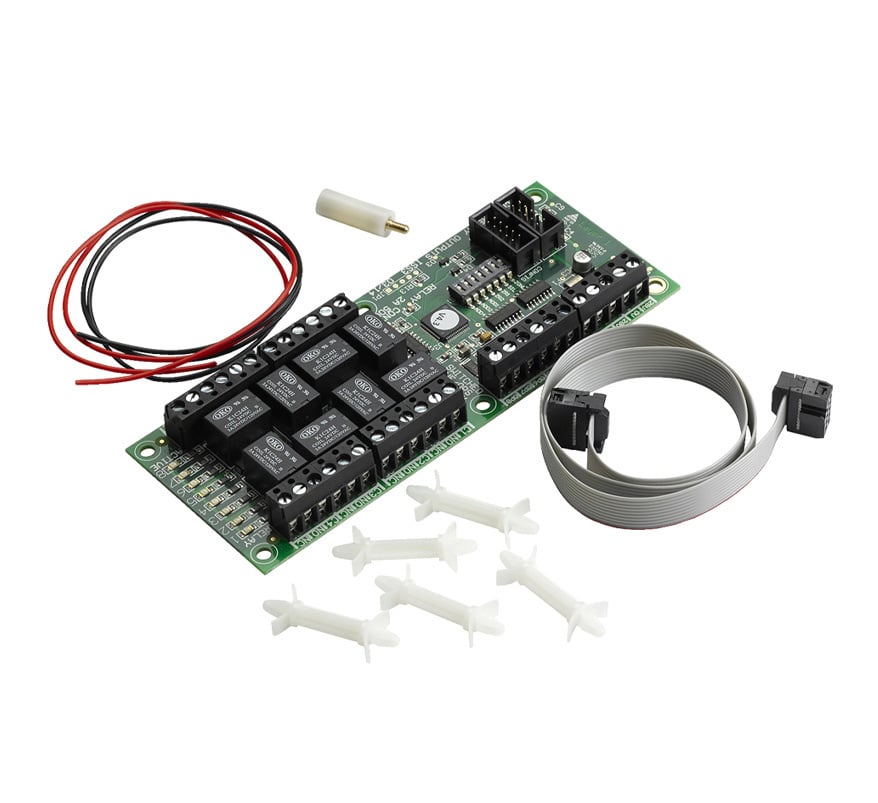

The HAES OPCARD-8 is an 8-way fire alarm panel output card that adds up to 16 common or zonal outputs inside HAES Esento conventional and ESPRiT addressable panels.
The HAES OPCARD-8 is an 8-way output extension card for HAES Esento conventional panels (XLEN, XL32) and ESPRiT addressable panels. It adds 8 volt-free changeover relays and 8 switched -ve outputs, giving up to 16 common or zonal outputs per card. The card fits inside the control panel.
Key features
- 8 x volt-free changeover relay outputs plus 8 x switched -ve outputs
- Outputs set to operate common or zonal via DIL switch
- Outputs can be programmed to cancel on RESET or SILENCE ALARMS
- Up to 4 cards can be fitted and linked by ribbon cable (up to four inside the Excel-32)
- Fits inside the control panel; piggy-backs on the main PCB in 2–12 zone panels
- 28 V output available for driving additional relays from the switched -ve outputs
Technical specifications
- Supply input: 22–32 V DC, max input current 5 A
- Supply output: 28 V, fused at 500 mA (resettable fuse)
- OP1–OP8: switched -ve outputs, overload voltage protected to 52 V DC, max 40 mA per output
- Relay contacts 1–8: clean changeover, unfused, max 3 A at 30 V DC
Used for: zonal or common signalling to door holders, plant shutdown, AOV systems and remote indicators from a HAES fire panel.
Frequently asked questions
Which panels does the OPCARD-8 fit?
HAES Esento conventional panels (XLEN, XL32) and ESPRiT addressable panels.
How many cards can be fitted?
Up to 4 cards can be fitted and linked by ribbon cable.
What are the relay contact ratings?
Clean changeover, unfused, max 3A at 30V DC; switched -ve outputs are max 40mA each.
