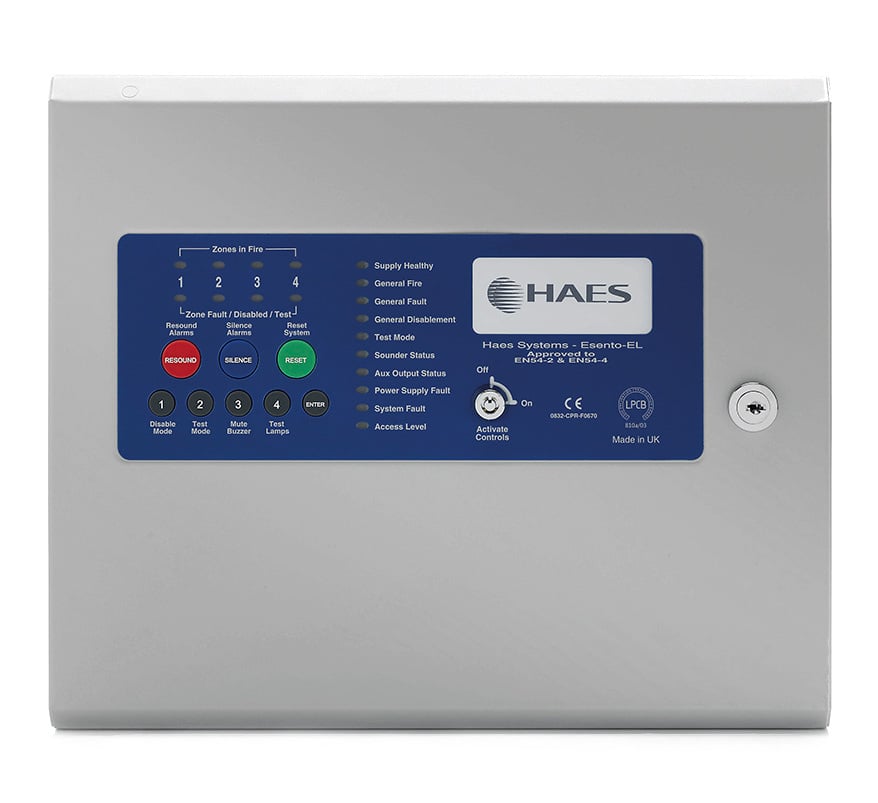

HAES Esento Eclipse 4 Zone Conventional / Twin Wire Fire Panel (ECL-4)

The HAES Esento Eclipse ECL-4 is a 4-zone conventional fire alarm control panel with twin-wire mode. It offers many of HAES's most popular programming features, including false alarm management, twin-wire mode and non-latching zones. The Eclipse does not support networking or repeater panels.

Key features

• 4 zones, conventional or twin-wire (twin-wire selected by DIL switch)
• Controls activated by key switch or code entry
• Integral detector removal monitoring
• 2 monitored sounder outputs, fused at 500 mA with resettable fuses
• Fire and fault volt-free relays; fire and fault switched -ve outputs
• Class change and alert inputs
• False alarm mode (Type A); test mode with or without sounders
• Disablement of zones, sounder outputs and aux outputs
• Intrinsically safe mode selectable per zone

Technical specifications

• Enclosure: 1.2 mm mild steel, IP30, colour ref. MW334E Interpon powder coat
• Dimensions: back box 300 W x 250 H x 80 D mm; lid 308 W x 260 H x 23 D mm
• Mains supply: 1.25 A internal switch-mode PSU, nominal 27 V DC
• Battery capacity: 2 x 3.2 Ah 12 V VRSLA
• Detection zones: 4 x conventional or twin-wire, EOL 4K7
• Sounder circuits: 2 x monitored, fused at 500 mA, EOL 4K7; alarm load 800 mA shared
• On-board relays: 1 x fire, 1 x fault, 3 A, 30 V volt-free changeover
• Outputs: 1 x fire, 1 x fault, 40 mA switched -ve
• False alarm management: Type A dependency mode, LPCB approved
