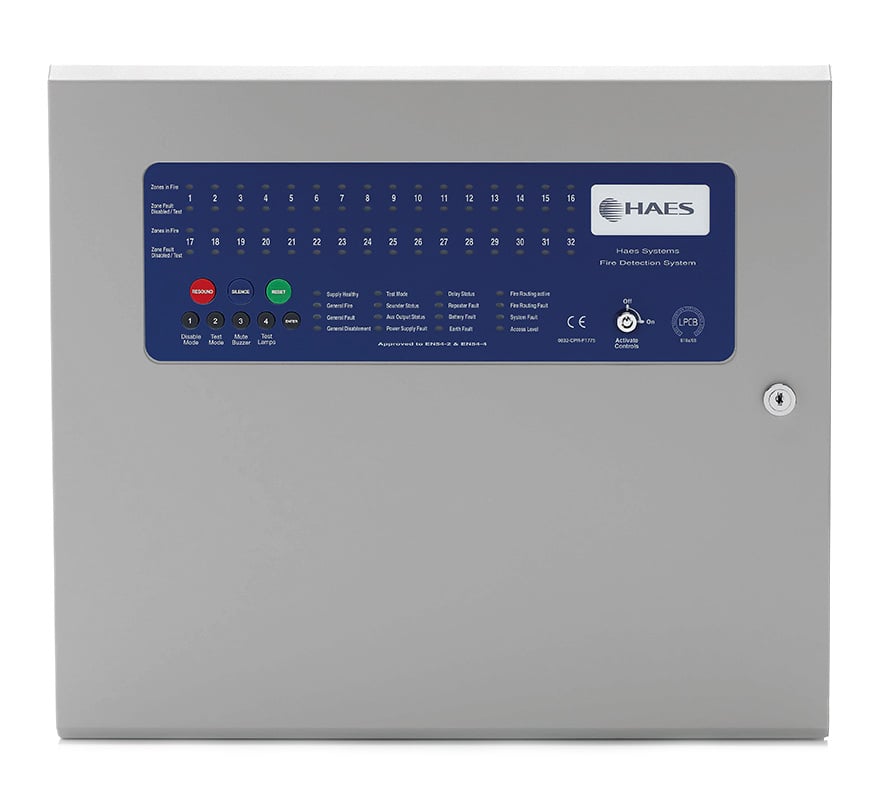

HAES Esento Evoque 32 Zone Conventional Fire Alarm Panel (XL32-32)

The HAES Esento Evoque 32 zone (XL32-32) is a conventional fire alarm control panel from the Esento Evoque range, HAES's large zone format panels. It provides a wide selection of programmable features, inputs and outputs for larger conventional fire detection systems.

Evoque panels can be networked with up to 8 control panels and support fully functional repeater panels, with three LPCB-approved false alarm management modes. Note that the Evoque range does not offer Twin Wire mode.

Key features

• 32 conventional detection zones
• Network up to 8 control panels (requires network card)
• Controls activated by key switch or code entry
• Integral detector removal monitoring
• 5A switch mode power supply, nominal 27V DC
• 4 monitored sounder outputs; alarm load 4.25A shared between sounder outputs
• 2 voltage-free changeover relays (1 x Fire, 1 x Fault)
• Class change, alert, silence alarms and reset switched -ve inputs
• Programmable fire, fault, disablement and reset switched -ve outputs
• Programmable delays to outputs, false alarm modes A, B and C
• Test mode with or without sounders; disable zones, sounder outputs, aux outputs and delays
• Programmable fire alarm routing output option

Technical specifications

• Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
• Cable entry: 20mm knockouts in the top and rear of the cabinet
• Dimensions: back box 450mm W x 400mm H x 130mm D; lid 465mm W x 410mm H x 25mm D
• Mains supply: 5A internal switch mode PSU, nominal 27V DC
• Battery capacity: 2 x 18Ah 12V VRSLA
• Detection zones: 32 x conventional, EOL 4K7
• Sounder circuits: 4 x monitored, fused at 500mA (resettable), EOL 4K7
• Networking: up to 8 control panels, fault tolerant RS485, requires TPCA05 network card
• On-board relays: 2 x programmable, 3A 30V volt-free changeover
• Programmable outputs: 4 x 40mA switched -ve
• Event log: 40 events
• Intrinsically safe mode: selectable per zone
• False alarm management: type A, B and C dependency modes, LPCB approved
• Delay timer: on-board programmable, 1 to 10 minutes
