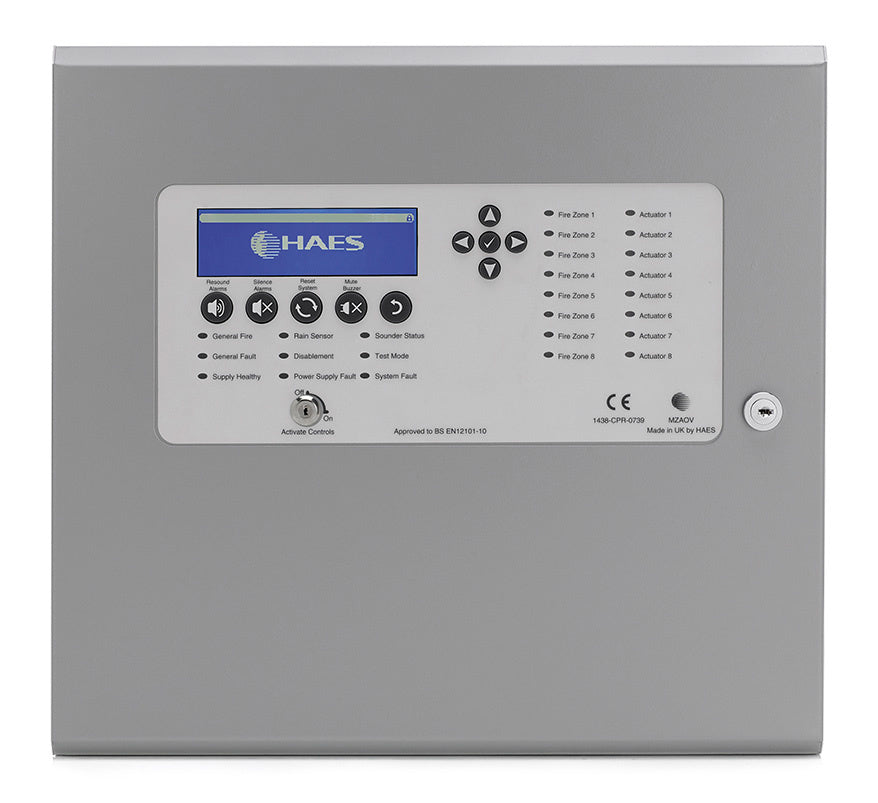

The HAES MZAOV-1001A is a single detection zone, non-extendable automatic opening vent (AOV) control panel with an integral 3A power supply. It is designed to control 24V DC actuators or magnets on smoke vents, windows and roof lights.
Battery backup keeps the actuators powered during a mains failure. Vent controls and indications are on the front of the panel, with a large graphical LCD and inputs for remote contacts, smoke detectors and manual controls. The detection zone can run as conventional or Twin Wire.
Key features
- 3A integral power supply
- Large graphical LCD display, easy to program
- Single detection zone, conventional or Twin Wire
- Input from other detection systems to activate the vents
- Monitored actuator output for controlling smoke vents
- Switch input to control a wide combination of vents
- Fireman's switch input overrides all other inputs
- All inputs and actuator outputs monitored for short and open circuit
- User switch inputs configurable as local fireman's switches
- Thermostat input for ventilation mode; vents openable in 10% steps
- Monitoring of unused inputs and outputs can be disabled
Technical specifications
- Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
- Cable entry: 20mm knockouts in the top and rear of the cabinet
- Dimensions: back box 375mm W x 345mm H x 110mm D; lid 382mm W x 354mm H x 25mm D
- Mains supply: 230V AC +10%/-15% 50Hz, max current 1.2A
- Power supply: 3A internal switch mode, nominal 27V DC (3A total including battery charging)
- Battery capacity: 2 x 12Ah 12V VRLA
- Detection zones: 1 x monitored, EOL 6k8
- Twin Wire: selectable in panel (allows AV devices on the detection circuit)
- Detector compatibility: Apollo S65 and Orbis, Hochiki CDX, Nittan EV and others
- On-board relays: 1 x Alarm, 1 x Fault, volt-free changeover, max 3A
- Fireman's switch input: Open/Close/Auto
- Vent control input: Open/Close (rocker switch)
- Actuator output: reversing actuator control (2.5A total max); can be configured as a maintained output for a magnetic door
- Inrush current: 20A for 2 seconds
- Aux output: 1 x volt-free normally open relay contact, closes when the zone is activated, max 3A
- False alarm management: type A, B and C dependency modes
- Temperature range: -5°C to +40°C
