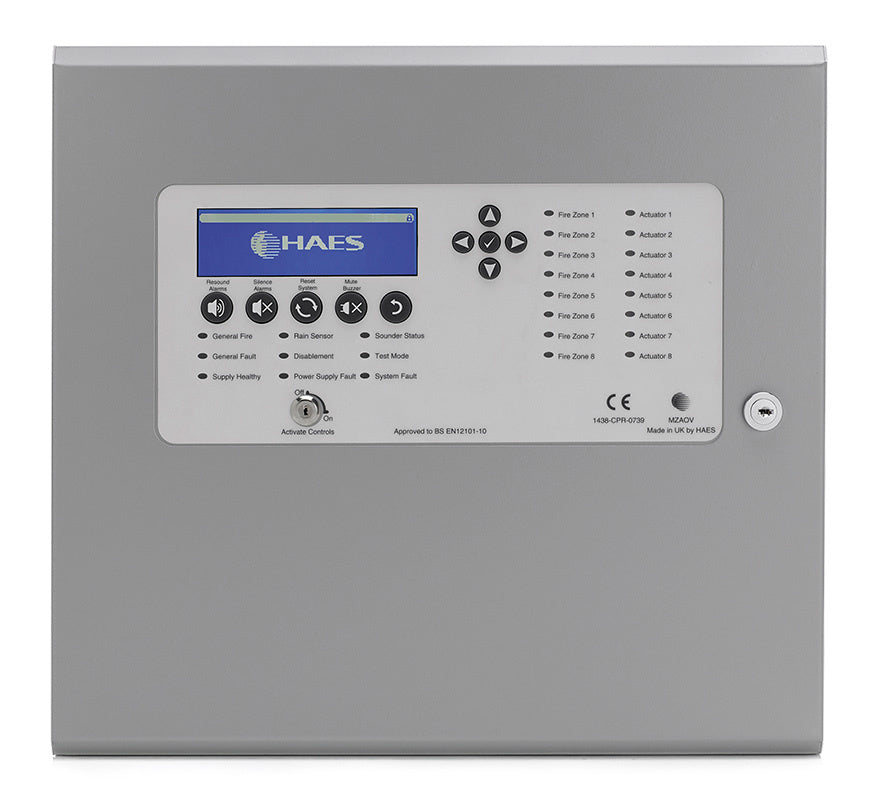

The HAES MZAOV-1002 is a multi-zone automatic opening vent (AOV) control panel with a 5 A integral power supply and a large graphical LCD. It has two detection zones as standard and can be extended to four. It controls smoke vents, windows and roof lights, and the detection zones accept conventional and twin-wire devices.
Key features
- 5 A integral power supply unit
- Large graphical display; easy to program
- Up to 4 detection zones (2 as standard), conventional and twin-wire
- Up to 4 external inputs from other detection systems
- Up to 4 monitored actuator outputs for controlling smoke vents
- Fireman's switch input overrides all other inputs; user switch inputs can be configured as local fireman's switches
- Thermostat input for ventilation mode, with vents openable in 10% steps
- Actuators can operate independently or linked together as required by EN 12101-9
- Optional rain sensor, PIR and BMS control
- Staggered actuator start to avoid combined start-up currents
- All inputs and actuator outputs monitored for short and open circuit; monitoring of unused inputs and outputs can be disabled
Technical specifications
- Enclosure: 1.2 mm mild steel, IP30, colour ref. MW334E Interpon powder coat
- Cable entry: 20 mm knockouts in the top and rear
- Dimensions: back box 375 W x 345 H x 110 D mm; lid 382 W x 354 H x 25 D mm
- Mains supply: 5 A internal switch-mode PSU, nominal 27 V DC
- Battery capacity: 2 x 12 Ah 12 V VRLA
- Detection zones: 2 or 4 monitored zones, EOL 6K8
- On-board relays: 1 x alarm, 1 x fault, volt-free changeover, max 3 A
- Actuator outputs: 2 or 4 reversal outputs, 4.5 A total max
- Inrush current: 20 A for 2 seconds
- Aux outputs: 2 or 4 volt-free normally open contacts, max 3 A
- BMS: 0–10 V positional control input and data output in 10% steps (on separate PCB)
- False alarm management: Type A, B and C dependency modes, LPCB approved
