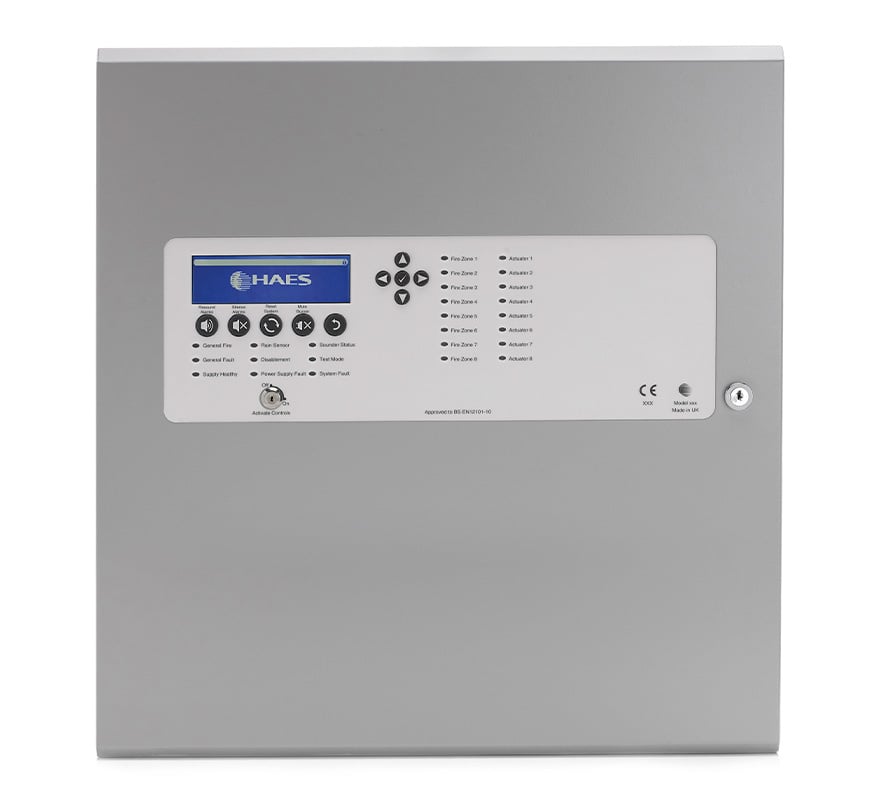

The HAES MZAOV 10A (MZAOV-1003) is a multi detection zone automatic opening vent (AOV) control panel with a 10A integral power supply. It is supplied with two detection zones, extendable up to 8, and has a large graphical LCD display.
It is designed for smoke vent control and is suitable for use with vents, windows and roof lights. Detection zones can be conventional or Twin Wire, and it accepts inputs from other detection systems such as a fire alarm panel.
Key features
- 10A integral PSU
- Large graphical display, easy to program
- Up to 8 detection zones, conventional and Twin Wire
- Up to 8 external inputs from other detection systems
- Up to 8 monitored actuator outputs for controlling smoke vents
- Fireman switch input overrides all other inputs
- All inputs and actuator outputs monitored for short and open circuit
- Thermostat input for ventilation mode; vents openable in 10% steps
- Actuators configurable for independent operation or linked together as required by EN 12101-9
- Optional support for rain sensor, PIR and BMS control
- Staggered start of actuators to avoid combined start-up currents
Technical specifications
- Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
- Cable entry: 20mm knockouts in the top and rear of the cabinet
- Dimensions: back box 460mm W x 490mm H x 110mm D; lid 470mm W x 500mm H x 25mm D
- Mains supply: 10A internal switch mode PSU, nominal 27V DC
- Battery capacity: 2 x 18Ah 12V VRLA
- Detection zones: 1 to 8 monitored, EOL 6K8
- Twin Wire: selectable in panel (allows AV devices on the detection circuit)
- On-board relays: 1 x Alarm, 1 x Fault, volt-free changeover, max 3A
- Fireman's switch input: Open/Close/Auto
- Vent control inputs: 1 to 8 (Open/Close rocker switch)
- Actuator outputs: 1 to 8 reversal actuator outputs (8A total max), configurable as maintained output for a magnetic door
- Inrush current: 20A for 2 seconds
- Aux outputs: 1 to 8 volt-free normally open contacts, max 3A
- BMS connection: 0-10V positional control input (10% steps) and 0-10V positional data output (on separate PCB)
- False alarm management: type A, B and C dependency modes, LPCB approved
