HAES Esprit Addressable Panel Network Communication Card (ESA-3002)
SKU: ESA-3002Brand: HAES Technologies
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 1 | 1 to 3 working days |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
HAES Esprit Addressable Panel Network Communication Card (ESA-3002)
£132.05
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Enables networking of Esprit addressable panels and repeaters
- RS485 serial communications, loop or radial network wiring
- Plugs into the COMMS A socket; supplied support pillars
- PCB-mounted DIL switch for addressing
Frequently bought together
HAES Technologies
HAES Esprit Dual Area Automatic Extinguishant Control Panel 3.4A PSU (ESG-1003)
Sale price£646.70
Out of stock. Lead time 2 to 6 weeks, estimate only
HAES Technologies
HAES Esprit-G Extinguishant Release Panel Output Card (ESG-2005)
Sale price£152.50
Out of stock. Lead time 2 to 6 weeks, estimate only
HAES Technologies
HAES Esprit-G Graphic Display Remote Status Unit (ESG-2001)
Sale price£234.40
Out of stock. Lead time 2 to 6 weeks, estimate only
HAES Technologies
HAES Esprit-G Mini LED Remote Status Unit (ESG-2002)
Sale price£72.80
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

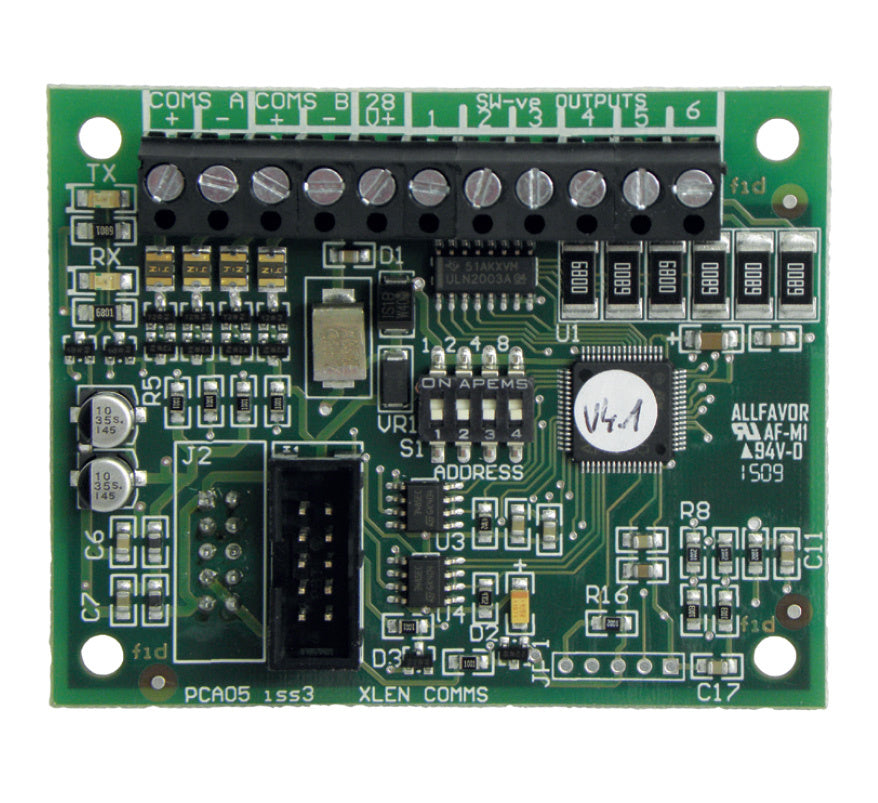

The HAES ESA-3002 is the network communication card for HAES Esprit addressable fire alarm control panels. It must be fitted before an Esprit panel can be networked to another panel or to a repeater.
The card plugs into the COMMS A socket on the panel's PSU card, with the display ribbon cable reconnected on top, and is added to the configuration with the panel's LEARN procedure. Its RS485 terminals can be wired as a loop or a radial network.
Key features
- Enables networking of Esprit addressable panels and repeaters
- RS485 serial communications, loop or radial network wiring
- Plugs into the COMMS A socket; supplied support pillars
- PCB-mounted DIL switch for addressing
Technical specifications
- Compatibility: HAES Esprit addressable control panels (Argus and Apollo versions)
- Communication terminals: COMS A (+ -) and COMS B (+ -), RS485
- Addressing: 0 to 7 for panels, 8 to 15 for repeaters (0 = master panel)
- Panel-to-panel wiring: 2 wires (RS485 data)
- Panel-to-repeater wiring: 4 wires (2 x 28V power, 2 x RS485 data)
- Note: all panels on a network should run the same firmware version
