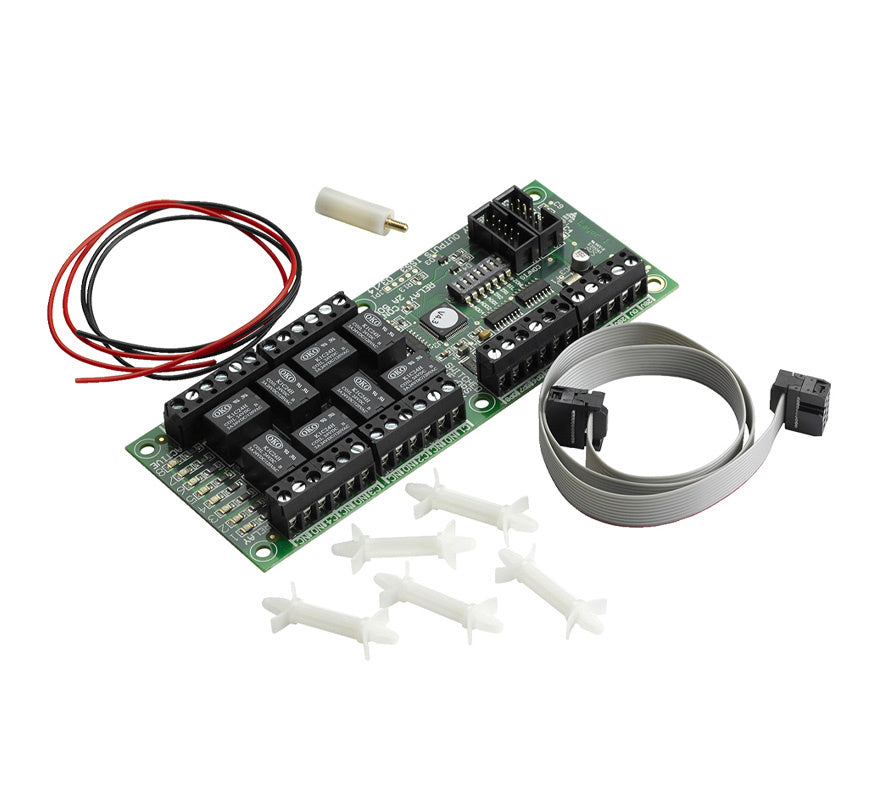

The HAES ESG-2005 is a peripheral output card for HAES Esprit-G extinguishant release control panels. It fits inside the control panel and provides 8 additional function relays and 8 switched negative outputs for zonal and operational signalling.
Outputs cover signals such as zone fire, disablement, gas released, manual only mode, hold or abort active and reset. On the dual area panel, one card is used per flood zone.
Key features
- 8 volt-free changeover relay outputs
- 8 switched -ve outputs
- Additional zonal and operational outputs
- Card fits inside the control panel
- Suitable for Esprit extinguishant release control panels
Technical specifications
- Supply input: 22-32V DC, max input current 200mA
- Supply output: 28V, fused at 500mA (resettable)
- OP1-OP8: switched -ve outputs, overload protected to 52V DC, max 40mA per output
- Relay contacts 1-8: clean changeover, unfused, max 3A at 30V DC
