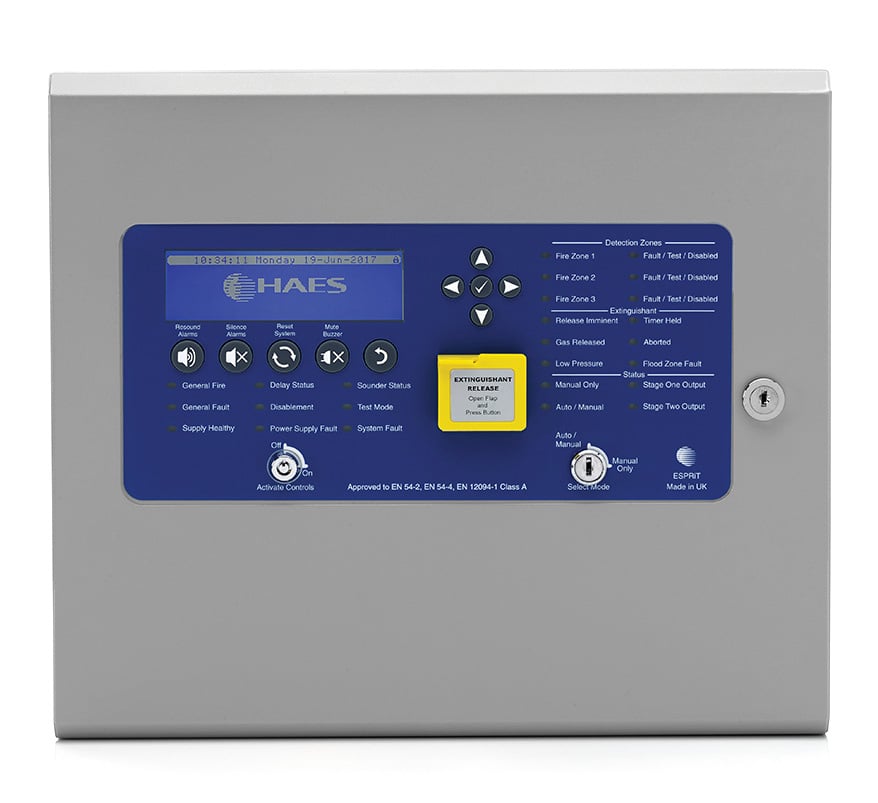

The HAES Esprit-G ESG-1002 is a single flood area automatic extinguishant release control panel with an integral 3.4A power supply. It is fully configurable for gas release scenarios, with flexible zone voting for release and programmable countdown timers to suit the site.
It has 3 conventional detection zones, supports metron and solenoid type actuators, and a large graphical display gives an easy-to-navigate menu system. It is approved to EN12094-1, EN54-2 and EN54-4.
Key features
- Single flooding area with 3 detection zones
- Approved to EN12094-1, EN54-2 and EN54-4
- Fully configurable zone voting for gas release
- 4 programmable sounder circuits with configurable delays
- Zero time delay option for manual call points
- Compatible with IS barriers; non-latching zone input option
- Hold, abort, flow switch, manual release, mode control and pressure switch monitoring inputs
- Fire, fault and stage signal relays; 2A actuator circuit
- RS485 communications for remote status units
- Access controls via key switch or code entry
- Onboard manual release button under plastic cover
Technical specifications
- Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
- Cable entry: 20mm knockouts in the top and rear of the cabinet
- Dimensions: back box 350mm W x 300mm H x 80mm D; lid 357mm W x 310mm H x 25mm D
- Mains supply: universal switch mode PSU, 3.4A
- Battery capacity: up to 7Ah 24V
- Charger current: 700mA
- Auxiliary supply: 400mA (21-28V DC)
- Detection zones: 3 x conventional
- Extinguishing zones: 1 flooding zone, metron and solenoid actuators supported
- Sounder circuits: 4 x 400mA, 21-28V DC
- On-board relays: 6 x 1A 30V DC (fire, fault, stage 1 and 2, extract, local)
- Additional outputs: via ESG-2005 output card
- Countdown timers: extinguishant delay 0-60 s, extinguishant duration 1-300 s, flooding time 60-1800 s, extract time 1-90 min, reset inhibit 0-30 min
- Event log: 255 events, time and date stamped
- Earth fault monitoring: yes
- Remote status units: graphic display and mini versions via RS485, up to 16
- Display: 240 x 64 backlit graphical LCD
