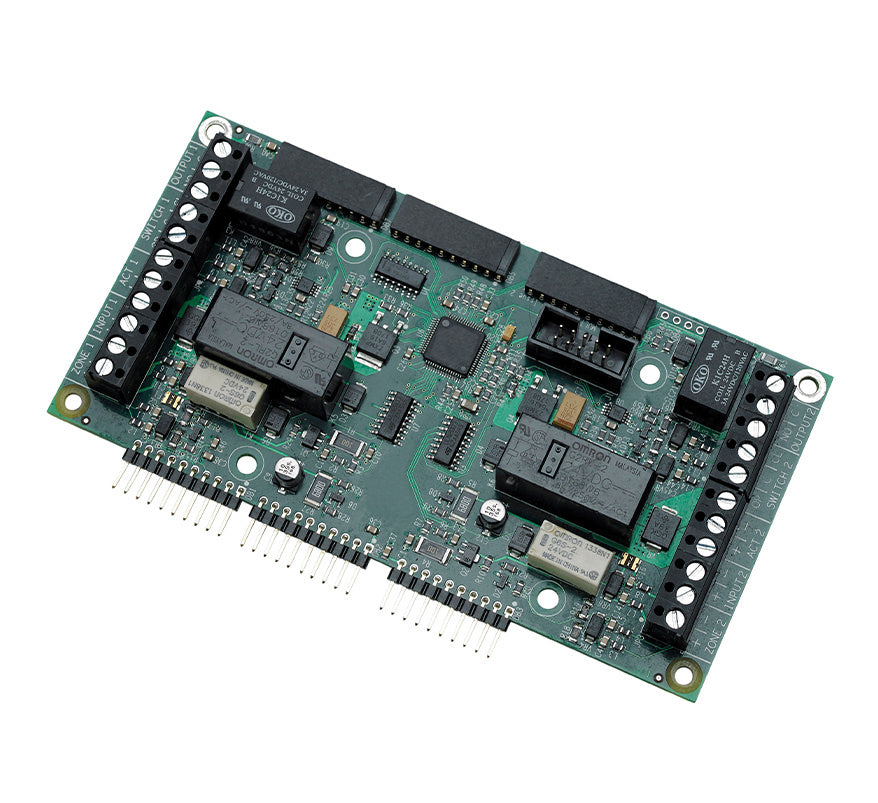

The HAES MZAOV-3001 is a two zone extension PCB for HAES MZAOV automatic opening vent (AOV) control panels. It provides two additional detection zones and two additional actuator outputs.
MZAOV panels are supplied with two zones: the MZAOV-1001 (3A) and MZAOV-1002 (5A) can be extended up to 4 zones, and the MZAOV-1003 (10A) up to 8 zones, using this card.
Key features
- Adds two detection zones to an MZAOV panel
- Adds two actuator outputs for smoke vent control
- For extendable MZAOV control panels
Technical specifications
- Order code: MZAOV-3001
- Function: 2 zone extension PCB
- Additional detection zones: 2
- Additional actuator outputs: 2
- Compatible panels: MZAOV-1001 and MZAOV-1002 (up to 4 zones), MZAOV-1003 (up to 8 zones)
