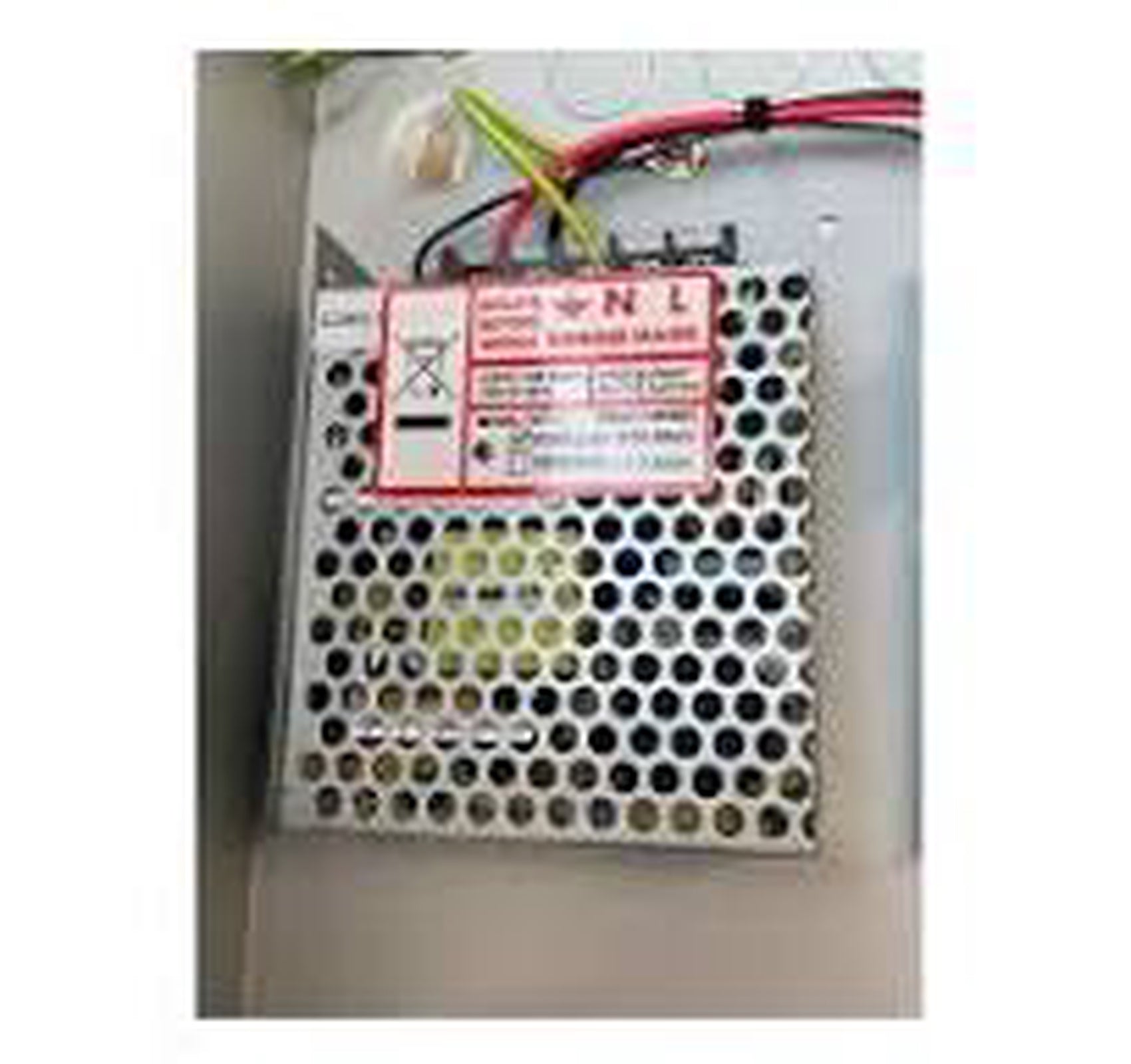

The Haes PSM1.5-24ECL is the internal switch mode power supply module for Haes Eclipse conventional fire alarm control panels (Esento Eclipse 2 and 4 zone). It supplies the panel and provides temperature compensated charging for the standby batteries, and is supplied as a replacement part.
Key features
- Replacement power supply module for Eclipse / Esento Eclipse panels
- Rated at 1.5A total, including battery charging
- Temperature compensated battery charging
- Supply and charger faults are monitored by the panel
- Designed to meet the power supply requirements of EN54-4
Specification
| Product code |
PSM1.5-24ECL |
| Brand |
Haes |
| Fits |
Haes Eclipse (Esento Eclipse) control panels |
| Mains supply |
230V AC +10% / -15%, 50Hz, 1A max |
| Mains fuse |
T2A 250V (internal) |
| Output rating |
1.5A total including battery charging |
| Output voltage |
19.92 - 30.09V DC |
| Battery charging voltage |
27.3V DC nominal at 20 deg C |
| Batteries |
2 x 3.2Ah 12V VRLA |
