HAES Multi Purpose Isolateable Timer / Pulsing Relay Unit (BRTIMER)
SKU: BRTIMERBrand: HAES Technologies
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
HAES Multi Purpose Isolateable Timer / Pulsing Relay Unit (BRTIMER)
£79.65
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 8A 24V double pole changeover relay
- Contacts rated at 250V AC
- Two-colour relay status LED
- Delay timer mode: 0-255 seconds, minutes or hours
- Pulsing relay mode: on and off times individually set from 0-255 seconds
- Relay isolate key switch
Frequently bought together
HAES Technologies
HAES MZAOV 2 Zone & Actuator Output Extension Card (MZAOV-3001)
Sale price£134.15
In stock
HAES Technologies
HAES MZAOV PIR, Rain Sensor & BMS Add On Card (MZAOV-3002)
Sale price£112.05
Out of stock. Lead time 2 to 6 weeks, estimate only
HAES Technologies
HAES Panel Activate Controls Keyswitch Assembly (SWK134-WIRED)
Sale price£21.95
In stock
HAES Technologies
Haes Power Supply Module for Eclipse Control Panels
Sale price£46.85
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

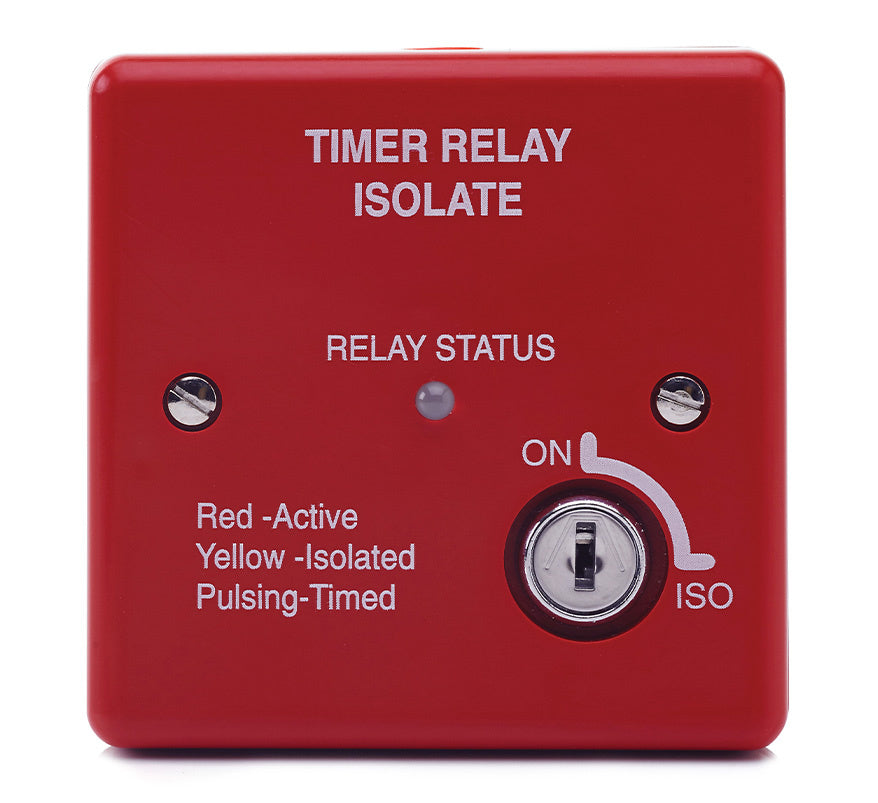

The HAES BRTIMER is a multi-purpose timer / pulsing relay with isolate: an 8A double pole changeover relay in a red fire retardant ABS enclosure with a programmable delay circuit and a relay isolate key switch.
In delay timer mode the relay can be delayed by 0-255 seconds, minutes or hours. In pulsing mode the relay switches on and off, with on and off times individually set from 0-255 seconds. A PCB-only version (RECARD-TMR) is also available.
Key features
- 8A 24V double pole changeover relay
- Contacts rated at 250V AC
- Two-colour relay status LED
- Delay timer mode: 0-255 seconds, minutes or hours
- Pulsing relay mode: on and off times individually set from 0-255 seconds
- Relay isolate key switch
- Red fire retardant ABS enclosure for surface or flush fitting
Technical specifications
- Operating voltage: 24V DC (nominal)
- Supply input: 28V DC (+/- 20%)
- Contact rating: 250V AC 8A, double pole changeover (unfused)
- Activate input: switched negative
- Quiescent current: 7.5mA
- Activated current: 24mA (LED only), 38mA (LED + buzzer), 43mA (LED + relay), 57mA (LED + buzzer + relay)
- Enclosure: RoHS compliant FR ABS, red
- Dimensions: 87mm W x 87mm H x 44mm D
