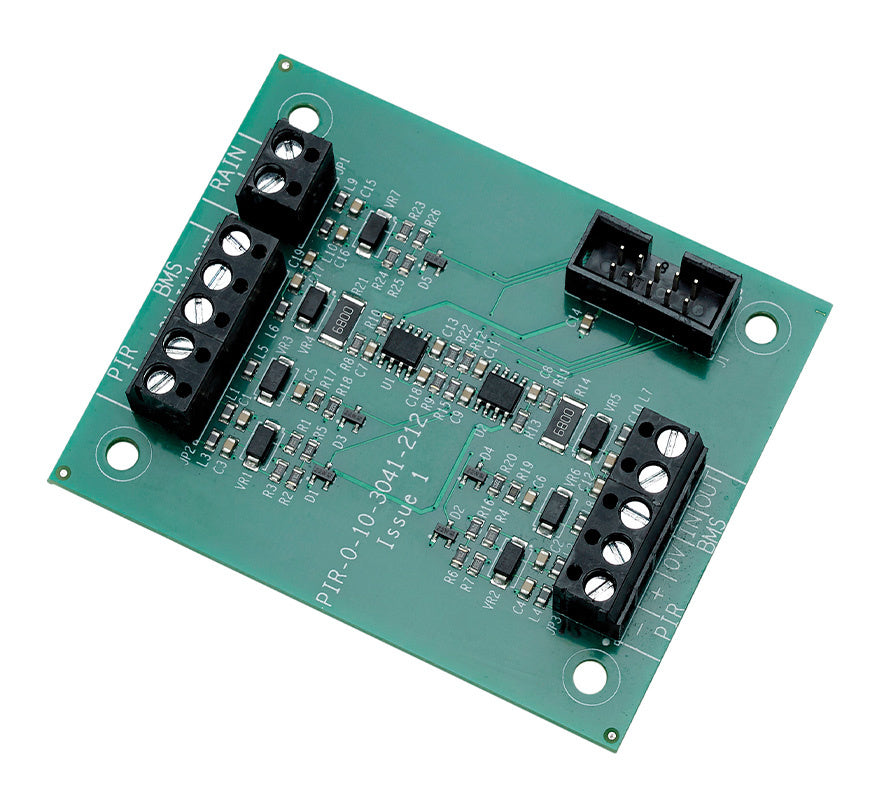

The HAES MZAOV-3002 is a plug-in add-on card for HAES MZAOV multi-zone automatic opening vent (AOV) control panels. It adds PIR and rain sensor inputs, plus a 0-10V positional control input and positional data output for connection to a building management system (BMS).
A PIR input can be used to stop a vent closing while someone is detected nearby, guarding against entrapment injury. The rain sensor input lets the panel close vents when rain is detected.
Key features
- PIR sensor input for trap protection
- Rain sensor input to close vents
- BMS positional control input, 0-10V in 10% steps
- BMS positional data output giving vent position feedback
- 12V DC supply output to power the PIR
- Simple plug-in PCB for MZAOV control panels
Technical specifications
- Compatibility: HAES MZAOV automatic opening vent control panels
- PIR input: needs 10kΩ to trigger, 6k8Ω 5% 0.25W end-of-line resistor
- Rain sensor input: 2k7Ω alarm, 6k8Ω 5% 0.25W end-of-line resistor
- BMS input: 0-10V DC positional control in 10% steps of motor run time, 75kΩ impedance
- BMS output: 0-10V DC positional data, max 2mA, max 20kΩ load
- PIR supply output: 12V DC, fused at 100mA (resettable)
