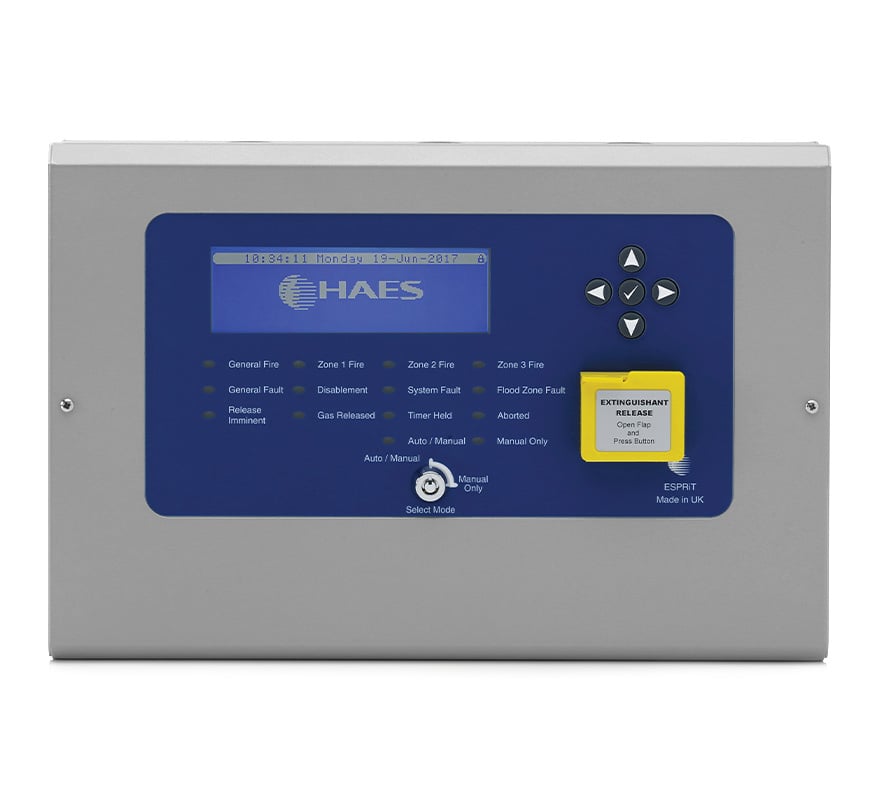

The HAES ESG-2001 is a remote status display unit for HAES Esprit-G extinguishant release control panels. It has the same large graphic display as the control panel, with a simple menu system, plus a manual release button and an auto/manual key switch.
It connects over RS485, and up to 16 remote status units can be connected on a system. With the dual flood area panel, each unit can be assigned to a specific flood area. The FMK-ES-03 bezel is available for recessed mounting.
Key features
- Large graphic display with simple menu navigation
- Manual release button
- Auto/manual key switch
- Robust metal enclosure
- Up to 16 remote status units per system
Technical specifications
- Compatibility: HAES Esprit-G extinguishant release control panels
- Dimensions: 305mm W x 205mm H x 40mm D
- Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
- Input voltage: 24V DC supply required
- Connections: 2-wire RS485 comms plus 24V +/- (4 wires)
- Recessing bezel: FMK-ES-03 (sold separately)
