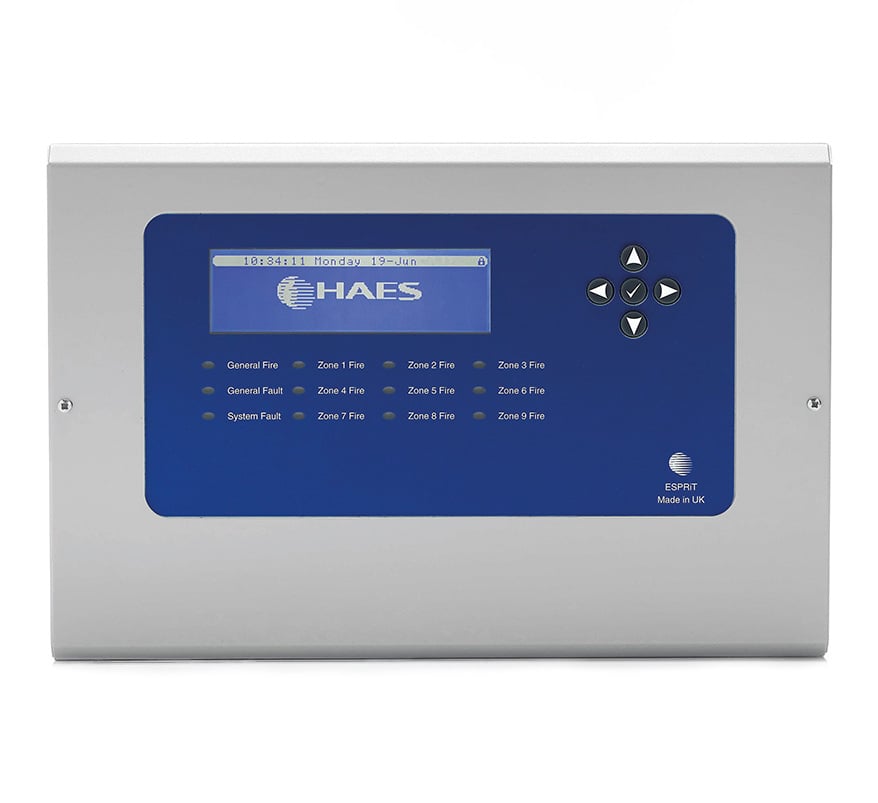

The HAES ESA-2001 is a networked repeater panel for use with any HAES Esprit-A addressable fire alarm control panel. It reports all events for the entire network and gives remote control of evacuate, mute buzzer, silence and reset.
Its compact styling suits small and medium sites, and a large graphical display gives an easy-to-navigate menu system. It is powered externally from the main control panel's auxiliary supply.
Key features
- Large backlit graphical display
- All events reported for the entire network
- Remote control of evacuate, mute buzzer, silence and reset
- Externally powered from the main control panel
- Programmable company logo
- Robust metal enclosure
Technical specifications
- Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
- Cable entry: 20mm knockouts in the top and rear of the cabinet
- Dimensions: back box 300mm W x 202mm H x 56mm D; with lid 306mm W x 206mm H x 58mm D
- Power supply: 28V from the main control panel auxiliary supply, 100mA max
- Display: 240 x 64 backlit graphical LCD
- Recessing bezel: FMK-ES-03 (sold separately)
