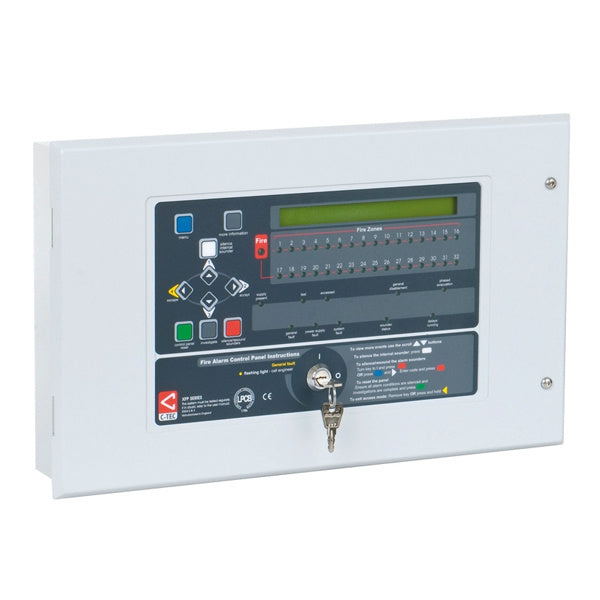

C-TEC XFP 32 Zone Addressable Repeater Panel (All Protocols) (XFP510-32)

The C-TEC XFP510-32 is a 32 zone repeater panel for C-TEC XFP addressable fire alarm panels. It repeats the functions and controls of an XFP main panel at other parts of a site, such as fire service entrances, and works with XFP main panels running the C-TEC CAST, Apollo XP95/Discovery or Hochiki ESP protocols.

Key features

• Offers all the functions and controls of an XFP main panel (Access Levels 1, 2 and 3)
• Compatible with XFP CAST, Apollo XP95/Discovery and Hochiki ESP main panels
• AFP711 network driver card fitted as standard
• On-board fault relay
• Up to eight XFP repeaters can be connected to one non-networked XFP main panel
• Requires its own dedicated mains supply and battery back-up

Technical specifications

• Order code: XFP510-32
• Mains supply: 230V 50/60Hz, 680mA maximum
• Internal power supply: 27V DC nominal; total output current limited to 3A @ 230V AC
• Batteries: 2 x 12V 7Ah VRLA in series
• Fault relay: failsafe, rated 1A at 30V DC (not for switching mains voltages)
• Display: 2 line x 40 character backlit LCD with 32 zonal LEDs
• Network: maximum 8 repeaters per main XFP; maximum total repeater network length 500m; 1.5mm² two-core screened fire-resistant cable; non-redundant
• Dimensions: 410 W x 250 H x 80 D mm (base); lid 439 W x 274 H mm; semi-flush mounting hole 412 W x 255 H x 50 D mm (requires XFP385 bezel)
• Construction: metal enclosure
• Weight: 4.5kg (without batteries)
• Operating temperature: -5°C to +40°C, maximum 95% relative humidity
