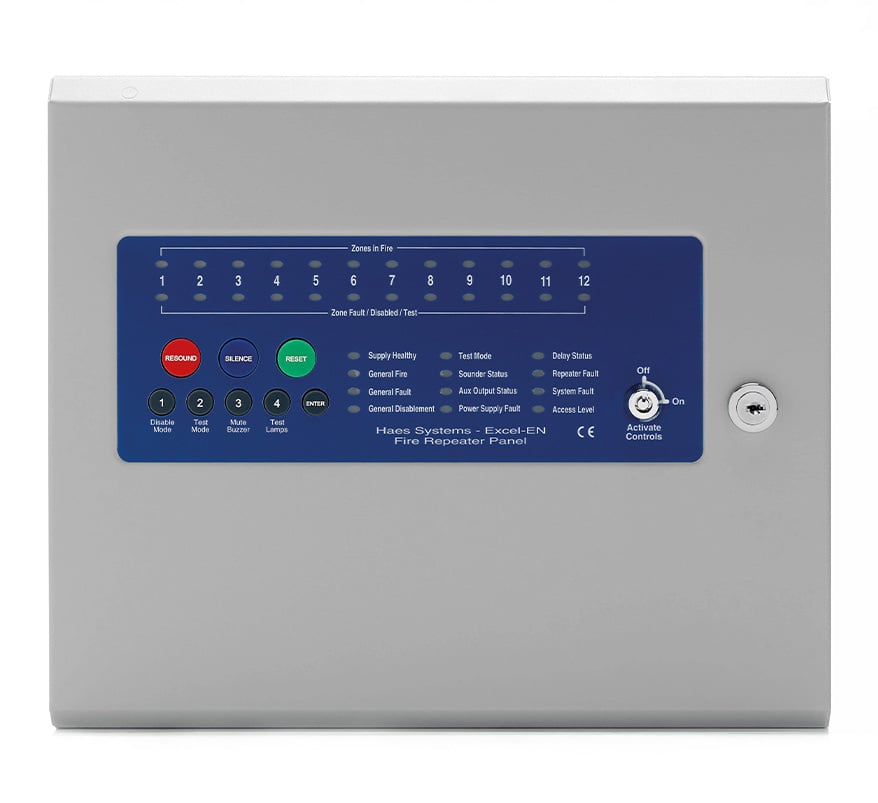

HAES Esento 12 Zone Fully Functional / Passive Repeater Panel (XLEN-R-12)

The HAES Esento 12 Way Repeater (XLEN-R-12) is a 12 zone fire alarm repeater panel that can operate as a fully functional or passive repeater. It is suitable for the Esento conventional panel range (not suitable for Eclipse panels).

It shows zonal fire and fault indications at a second location and, when fully functional, gives access to panel controls by key switch or code entry.

Key features

• 12 zonal fire and fault indications
• Fully functional or passive operation
• Controls activated by key switch or code entry
• 1.25A switch mode power supply, nominal 27V DC
• Class change and alert inputs
• 6 programmable switched -ve outputs
• Test mode with or without sounders; disable zones, sounder outputs, aux outputs and delays

Technical specifications

• Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
• Cable entry: 20mm knockouts in the top and rear of the cabinet
• Dimensions: back box 300mm W x 250mm H x 80mm D; lid 308mm W x 260mm H x 23mm D
• Mains supply: 1.25A internal switch mode PSU, nominal 27V DC
• Battery capacity: 2 x 3.2Ah 12V VRSLA
• Outputs: 6 x programmable switched -ve (on network card)
• Switch inputs: class change and alert (pulsing)
• Communication wiring: fault tolerant wiring needs 4-core (min 1.5mm) fireproof cable; legacy radial wiring needs 2-core (min 1.5mm) fireproof cable
