Kentec Syncro View Repeater Panel c/w Enable Keyswitch - 230v (K67751M1)

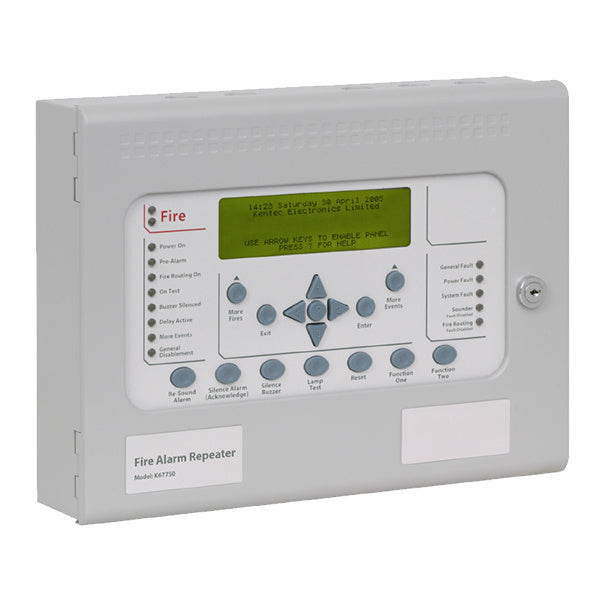

The Kentec Syncro View K67751M1 is a mains powered LCD repeater panel with enable keyswitch for the Syncro AS fire alarm control panel. It duplicates the indications and controls of the Syncro AS at another location over a simple two-wire serial data connection that is separate from the Syncro AS network, and has a 750mA power supply with local battery back-up.

Key features

• Replicates all Syncro panel controls and indications
• Up to 15 annunciators can be connected to each Syncro AS panel
• Large graphic LCD (240 x 64 pixels) and high brightness LED indications
• Internal sounder
• Enable control keyswitch fitted
• 3 programmable inputs and 5 programmable relay outputs
• Connection monitored by the Syncro fire control panel
• Removable electronics for easy installation; multi-language options

Technical specifications

• Mains supply: 230V AC +10%/-15% (20W max)
• Mains supply fuse: 2A, 20mm
• Power supply rating: 28V 750mA total (including battery charging)
• Batteries: two 12V 1.9Ah sealed lead acid in series
• Battery charge voltage: 27.6V DC nominal; charge current 200mA max
• Quiescent current in mains fail: 0.03A; max current draw from batteries 95mA
• Serial data connection: 2-core RS485, up to 1200m total cable length
• Display: 8 lines of 40 characters graphic LCD
• Cable entry: 5 x 20mm knockouts in top and 5 in rear
• Terminal capacity: 2.5mm²
• Dimensions: 330 x 255 x 90mm; weight 4kg
• Construction: 1.2mm mild sheet steel, epoxy powder coated, BS 00 A 05 grey
• IP rating: IP30
