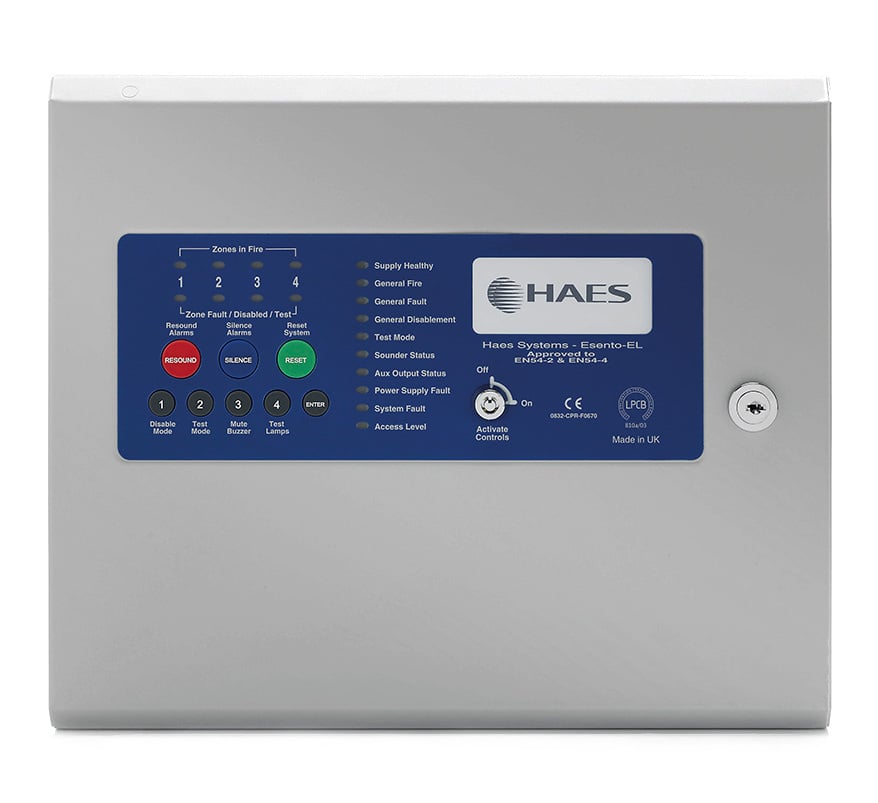

HAES Esento Marine Approved 4 Zone Conventional Fire Panel (ESEN-4MAR)

The HAES Esento Marine 4 zone (ESEN-4MAR) is a marine approved conventional fire alarm control panel. Esento Marine panels are approved by MED, Lloyd's Register and ABS for use in all seafaring vessels.

The 4 zone panel includes muster alarm zone settings, false alarm management mode and non-latching zones, and is compatible with Apollo Orbis Marine detectors. It is available in grey or black (black version ESEN-4MAR-B). Note that it does not support networking or repeater panels.

Key features

• 4 conventional detection zones
• Compatible with Apollo Orbis Marine detectors
• Muster alarm feature, selectable per zone
• Controls activated by key switch or code entry
• Integral detector removal monitoring and earth fault monitoring
• 1.25A switch mode power supply, nominal 27V DC
• 2 monitored sounder outputs; alarm load 800mA shared between outputs
• 2 voltage-free changeover relays (1 x Fire, 1 x Fault)
• Class change and alert inputs; fire and fault switched -ve outputs
• False alarm mode and test mode with or without sounders

Technical specifications

• Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
• Cable entry: 20mm knockouts in the top and rear of the cabinet
• Dimensions: back box 300mm W x 250mm H x 80mm D; lid 308mm W x 260mm H x 23mm D
• Mains supply: 1.25A internal switch mode PSU, nominal 27V DC
• Battery capacity: 2 x 3.2Ah 12V VRSLA
• Detection zones: 4 x conventional, EOL 4K7
• Sounder circuits: 2 x monitored, fused at 500mA (resettable), EOL 4K7
• On-board relays: 1 x Fire, 1 x Fault, 3A 30V volt-free changeover
• Switch inputs: class change and alert (pulsing)
• False alarm management: type A dependency mode, LPCB approved
• Approvals: MED, Lloyd's Register and ABS
