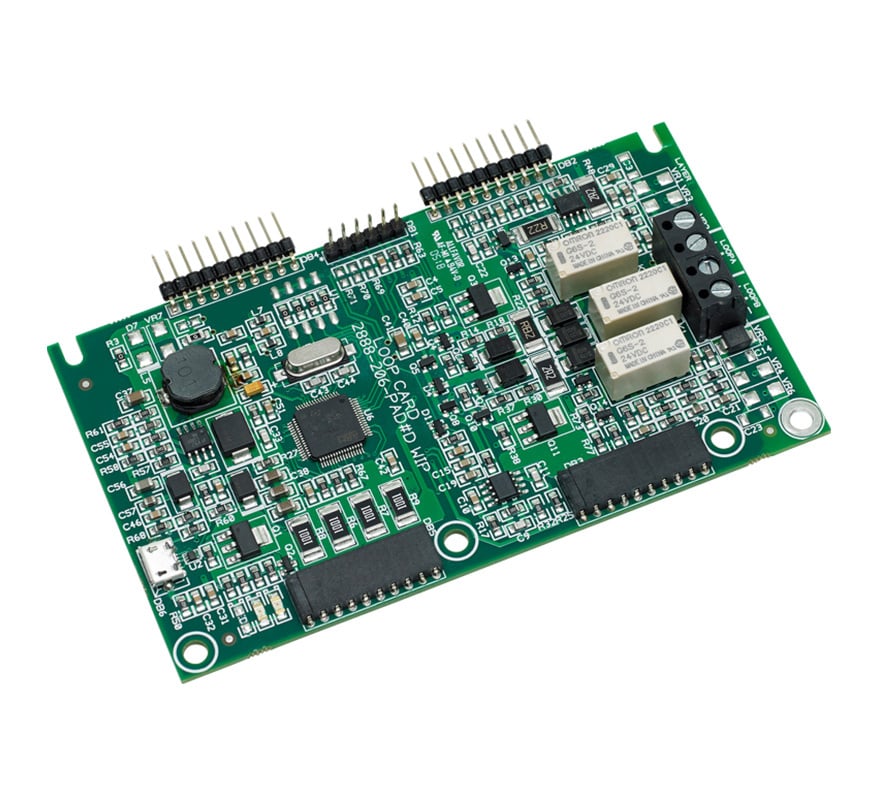

The HAES ESA-3006 is a single loop extension card kit for HAES Esprit-A analogue addressable fire alarm control panels using the Apollo protocol. It adds one addressable loop to the panel.
Depending on the panel type, a maximum of either 2 or 4 loop cards can be fitted, and each loop card can manage up to 240 devices.
Key features
- Adds one addressable loop to an Esprit-A panel
- Apollo protocol
- Up to 240 devices per loop card
- LOOP A and LOOP B terminal pairs
Technical specifications
- Compatibility: HAES Esprit-A addressable control panels, Apollo protocol
- Loop terminals: LOOP A (+ -) and LOOP B (+ -)
- Loop current limit: 500mA max
- Devices per loop card: up to 240
- Maximum loop cards per panel: 2 or 4, depending on the panel
- Additional quiescent current per loop card: 40mA
