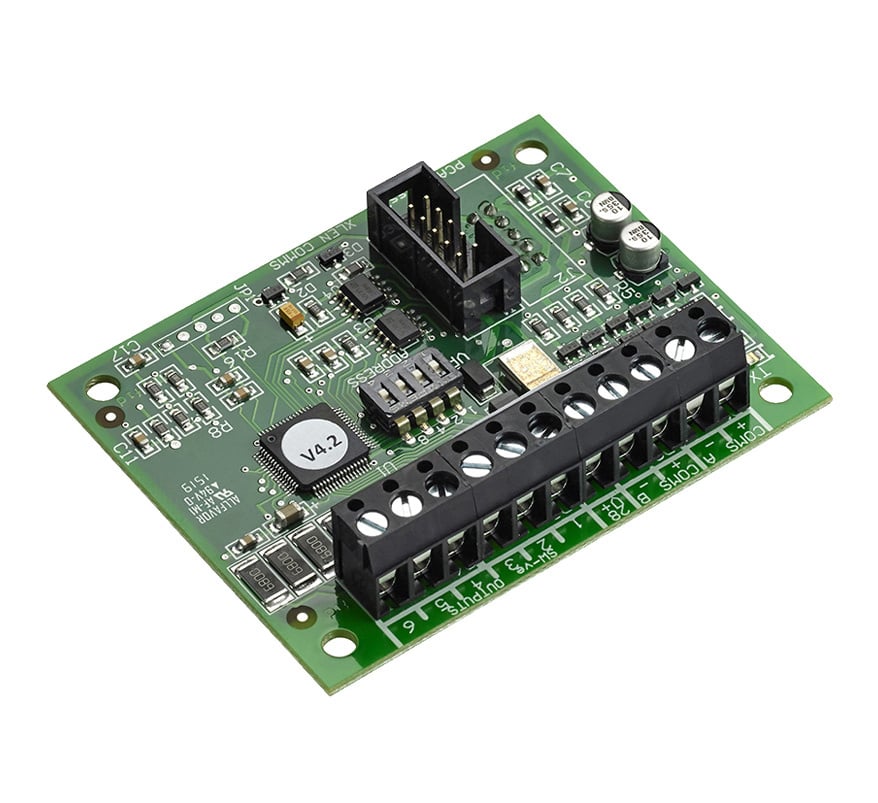

The HAES Esento Network Communications Card (CON-Comcard, shown in HAES literature as order code TPCA05) is a plug-in card used to network Esento control panels or to add repeater panels to the system. It allows up to 8 control panels to be networked, and up to 8 repeater panels or remote display units to be added to the network.
The card plugs onto the panel's main circuit board in place of the display board ribbon cable, which then reconnects to a socket on top of the card. Network mode is set by a DIL switch on the panel's main PCB.
Key features
- Simple plug-in communication card
- Networks up to 8 Esento control panels
- Adds up to 8 repeater panels or remote display units
- Fully monitored fault tolerant network or legacy radial wiring
- 2-core cable between cards
- Includes 6 programmable outputs
Technical specifications
- Standby current: 5.2mA
- Cable: 2-core 1.0mm (min) fire rated cable
- Comms A-B: RS485, fused at 20mA
- Supply output: 28V, fused at 500mA
- Outputs: 6 x programmable switched -ve, max load 40mA
