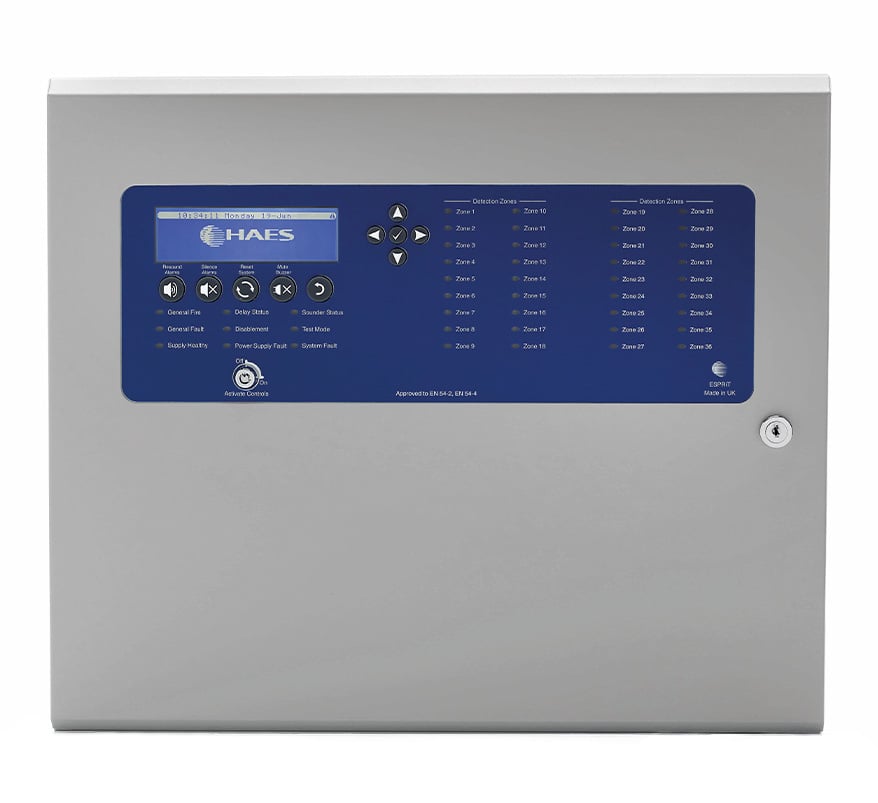

HAES Esprit 1-4 Loop Addressable Fire Panel (Argus Protocol) (ESA-1002)

The HAES Esprit ESA-1002 is an analogue addressable fire alarm control panel for the Argus protocol, supplied with one loop and extendable to 4 loops. With up to 240 devices per loop, its compact styling and programming power suit small and medium sites.

A large graphical display gives an easy-to-navigate menu system for set-up and maintenance, and the panel has 36 zonal LEDs and a 3.4A integral power supply.

Key features

• One to 4 loops, up to 240 devices per loop
• Large backlit graphical display with easy-to-navigate menus
• 2 programmable sounder circuits
• 255 date and time stamped event log entries
• Auto learn function and loop fault diagnostics
• False alarm management and delays to outputs
• 64 programmable groups
• 36 zonal LEDs; 3.4A integral PSU
• Programmable company logo
• Approved to EN54-2 and EN54-4
• Robust metal enclosure

Technical specifications

• Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
• Cable entry: 20mm knockouts in the top and rear of the cabinet
• Dimensions: back box 450mm W x 385mm H x 100mm D; lid 463mm W x 394mm H x 25mm D
• Mains supply: universal switch mode PSU, 3.4A
• Battery capacity: up to 18Ah 24V
• Charger current: 1.2A
• Auxiliary supply: 400mA (21-28V DC)
• Loop: Argus protocol, up to 4 loops, 500mA maximum per loop
• Sounder circuits: 2 x 400mA, 21-28V DC
• Switch inputs: class change, pulsing
• Event log: 255 events, time and date stamped
• Earth fault monitoring: yes
• Display: 240 x 64 backlit graphical LCD
