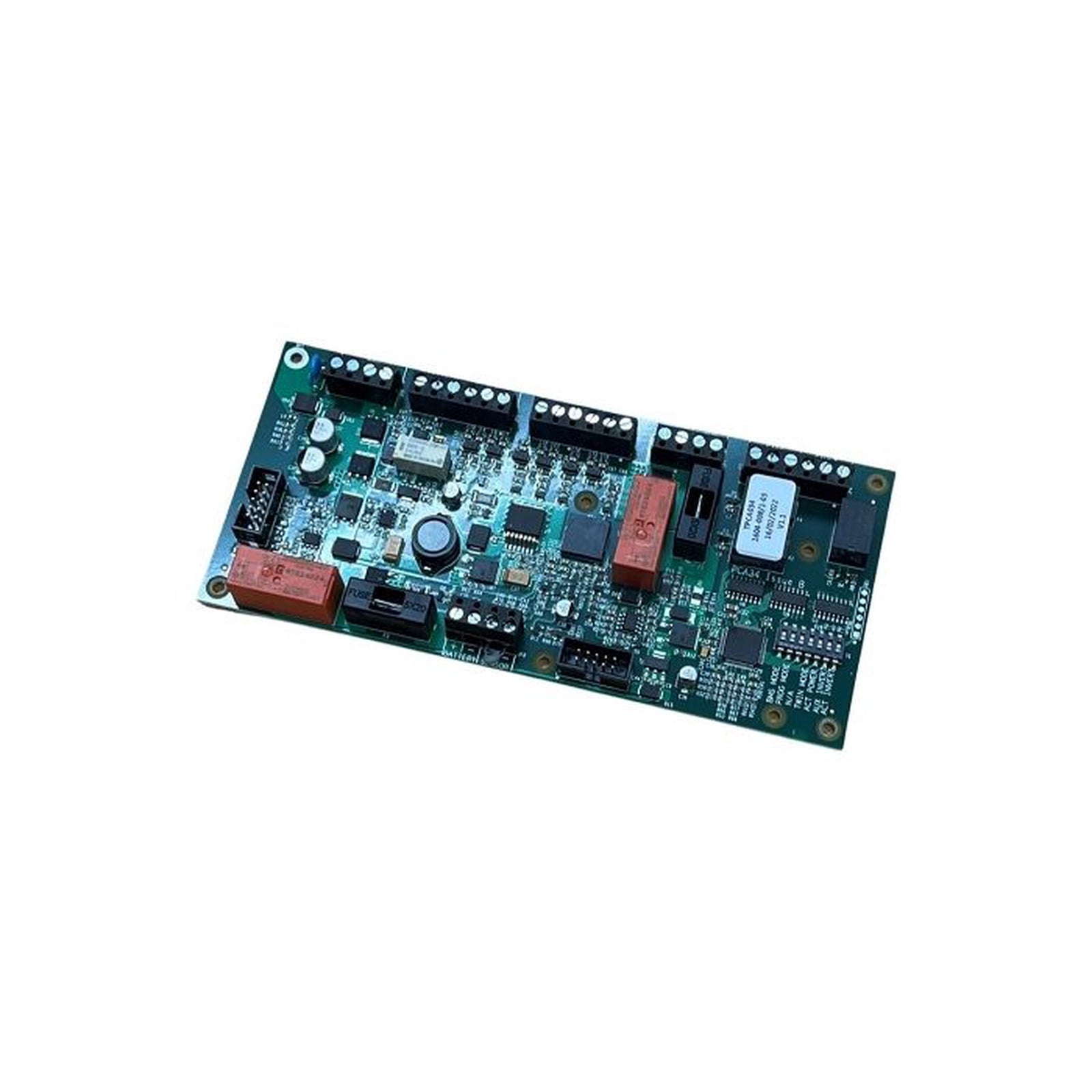

Haes TPCA034 PCB for SZAOV-1001
£148.80
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Master card for the SZAOV single zone AOV control panel
- Conventional or Twin Wire detection zone input, monitored by a 6K8 end-of-line resistor and fused at 500mA
- External open and close inputs plus manual and fireman's control switch inputs
- Polarity reversal actuator outputs for driving smoke vents, with a maintained 1A output for magnetic vents
- Volt-free fire and fault changeover relay contacts
- Temperature sensor and battery charging connections
