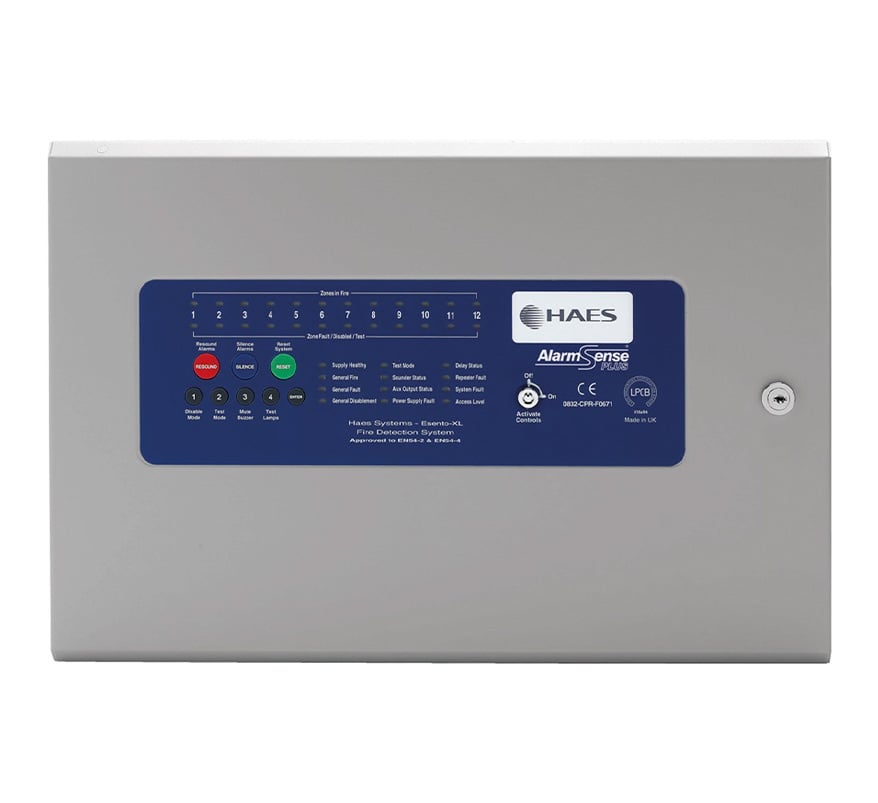

HAES AlarmSense PLUS 12 Zone Fire Alarm Control Panel (ASP-12)

The HAES AlarmSense PLUS ASP-12 is a 12 zone fire alarm control panel for Apollo's AlarmSense range of 2-wire devices. It provides 12 AlarmSense zones plus two conventional monitored sounder circuits, and is suitable for use with a fully functional repeater panel via a plug-in comms PCB.

Non-priority alarm and coincidence alarm can be selected per zone, and controls are activated by key switch or code entry. AlarmSense PLUS panels are approved to EN54-2 and EN54-4.

Key features

• 12 x AlarmSense zones
• Compatible with the Apollo AlarmSense range of devices
• Controls activated by key switch or code entry
• Integral detector removal monitoring
• 3A switch mode power supply, nominal 27V DC
• 2 conventional monitored sounder outputs, fused at 500mA (resettable)
• 2 voltage-free changeover relays (1 x Fire, 1 x Fault)
• Class change and alert inputs; fire and fault switched -ve outputs
• Test mode with or without sounders; disable zones, sounder outputs and aux outputs
• Fully functional repeater available

Technical specifications

• Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
• Cable entry: 20mm knockouts in the top and rear of the cabinet
• Dimensions: back box 450mm W x 300mm H x 85mm D; lid 460mm W x 310mm H x 25mm D
• Mains supply: 230V AC +10%/-15% 50Hz, max current 1.2A
• Power supply: 3A internal switch mode, nominal 27V DC; maximum load shared between outputs 2.4A
• Battery capacity: 2 x 7.0Ah 12V VRSLA
• Detection zones: 12 x AlarmSense protocol, EOL 3K3
• Zone circuits: monitoring current limit 50mA, fused at 200mA; typical max load 20 alarm devices at 18mA each
• Sounder circuits: 2 x monitored, fused at 500mA, EOL 3K3
• On-board relays: 2 x programmable, 3A 30V volt-free changeover
• Outputs: 2 x programmable 40mA switched -ve
• Switch inputs: class change and alert (pulsing)
• Event log: 40 events
• Non-priority alarm: selectable per zone
• Coincidence alarm: selectable per zone
