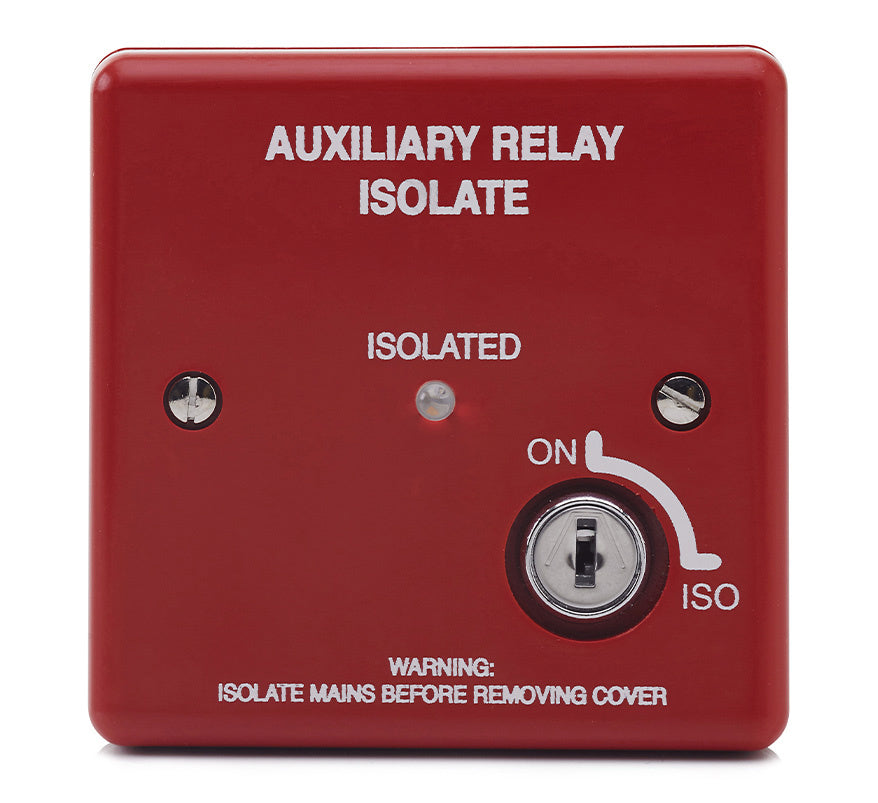

The HAES Boxed Isolate Relay (BRISOL-R) is an 8A, 24V double pole changeover relay in a red fire retardant ABS enclosure, with a key switch, LED indicator and optional integral buzzer. The key switch can be used to isolate the relay, or alternatively to activate it.
The enclosure is suitable for surface or flush fitting.
Key features
- 8A double pole relay, contacts rated at 250V AC
- Isolate key switch
- Isolated LED indicator
- Selectable internal buzzer
- Option to use the key switch to energise the relay
- Red fire retardant ABS enclosure for surface or flush fitting
Technical specifications
- Operating voltage: 24V DC nominal
- Contact rating: 250V AC 8A, double pole changeover
- Quiescent current: 0mA
- Isolated current: 5.3mA (LED only), 7.8mA (LED + buzzer), 12.1mA (LED + relay), 12.8mA (LED + buzzer + relay)
- Activated current: 18.3mA
- Enclosure: RoHS compliant FR ABS, 87mm W x 87mm H x 44mm D, red
