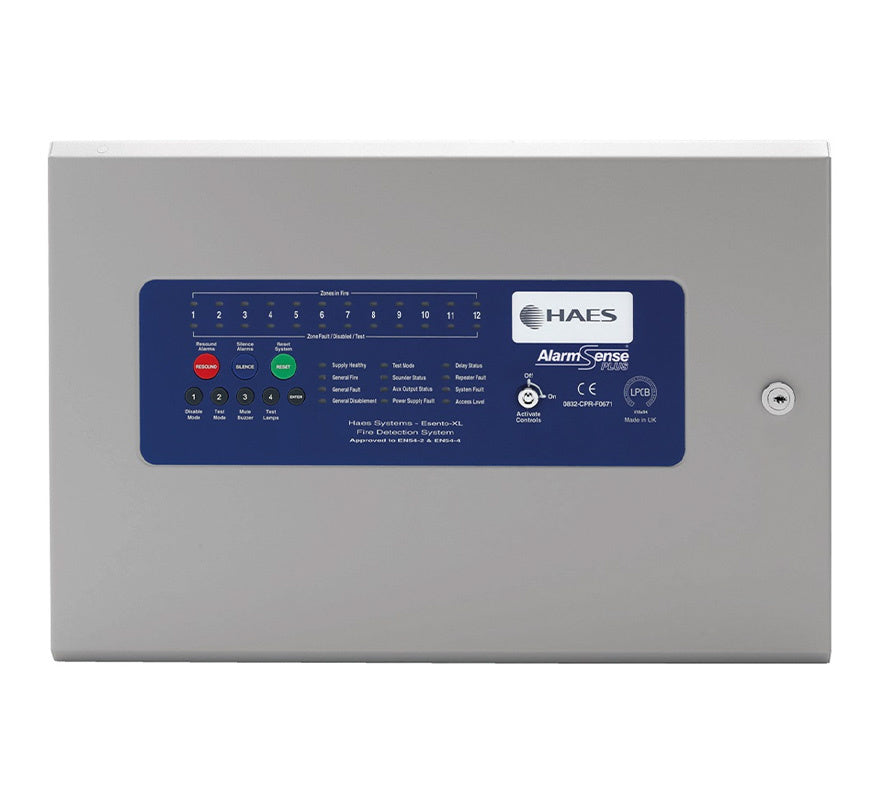

HAES AlarmSense PLUS 8 Zone Fire Alarm Control Panel (ASP-8)

The HAES AlarmSense PLUS 8 zone (ASP-8) is a fire alarm control panel for use with Apollo's AlarmSense range of 2-wire devices. It has 8 AlarmSense zones, is expandable to 12 zones and is suitable for use with a fully functional repeater panel.

Non-priority alarm and coincidence alarm can be selected per zone, and controls are activated by key switch or code entry.

Key features

• 8 x AlarmSense zones
• Compatible with the Apollo AlarmSense range of devices
• Controls activated by key switch or code entry
• Integral detector removal monitoring
• 3A switch mode power supply, nominal 27V DC
• 2 conventional monitored sounder outputs, fused at 500mA (resettable)
• 2 voltage-free changeover relays (1 x Fire, 1 x Fault)
• Class change and alert inputs; fire and fault switched -ve outputs
• Test mode with or without sounders; disable zones, sounder outputs and aux outputs
• Fully functional repeater available

Technical specifications

• Enclosure: 1.2mm mild steel, IP30, Interpon powder coat (colour ref MW334E)
• Cable entry: 20mm knockouts in the top and rear of the cabinet
• Dimensions: back box 450mm W x 300mm H x 85mm D; lid 460mm W x 310mm H x 25mm D
• Mains supply: 3A internal switch mode PSU, nominal 27V DC
• Battery capacity: 2 x 7.0Ah 12V VRSLA
• Detection zones: 8 x AlarmSense protocol, EOL 3K3
• Sounder circuits: 2 x conventional monitored, fused at 500mA, EOL 3K3
• On-board relays: 1 x Fire, 1 x Fault, 3A 30V volt-free changeover
• Outputs: 1 x Fire, 1 x Fault, 40mA switched -ve
• Switch inputs: class change and alert (pulsing)
• Event log: 40 events
• Non-priority alarm: selectable per zone
• Coincidence alarm: selectable per zone
