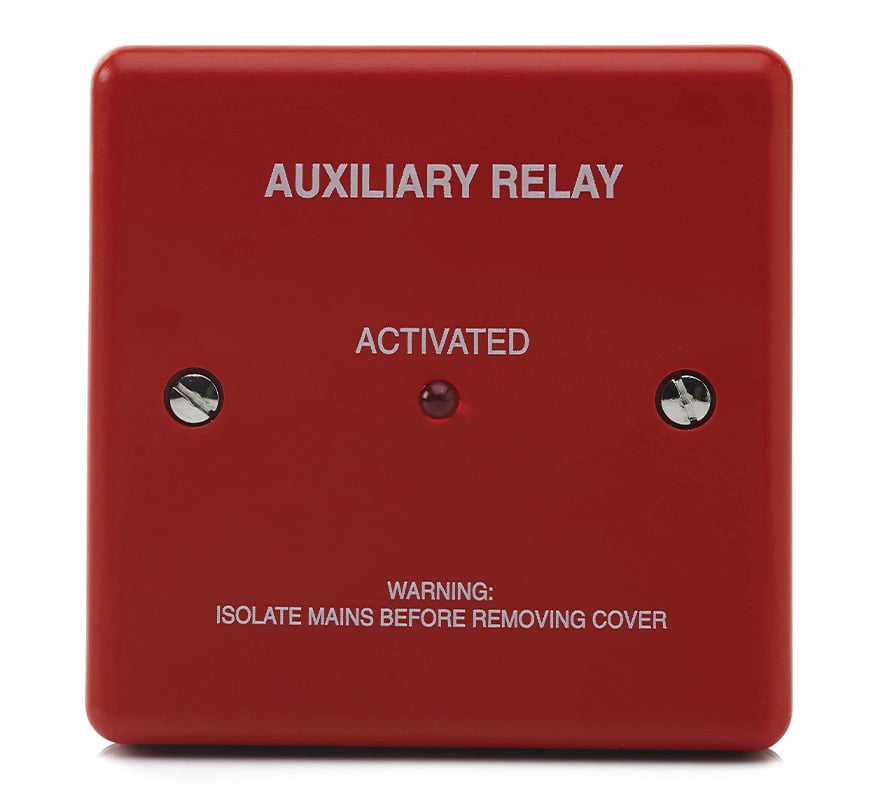

The HAES BRF248A-R is a boxed auxiliary relay: an 8A, 24V double pole changeover relay in a red fire retardant ABS enclosure with an 'activated' LED. It is typically driven from a fire alarm panel output to switch auxiliary equipment.
The outputs are fused at 5A and the contacts are rated at 250V AC. A white version (BRF248A-W) is also available.
Key features
- 8A 24V double pole changeover relay
- Contacts rated at 250V AC
- Contacts fused at 5A
- 'Activated' LED indicator
- Red fire retardant ABS enclosure
- Suitable for surface or flush fitting
Technical specifications
- Operating voltage: 24V DC (nominal)
- Contact rating: 250V AC 8A, double pole changeover
- Fuse: 5A, 20mm quick blow (F)
- Enclosure: RoHS compliant FR ABS, red
- Dimensions: 87mm W x 87mm H x 44mm D
