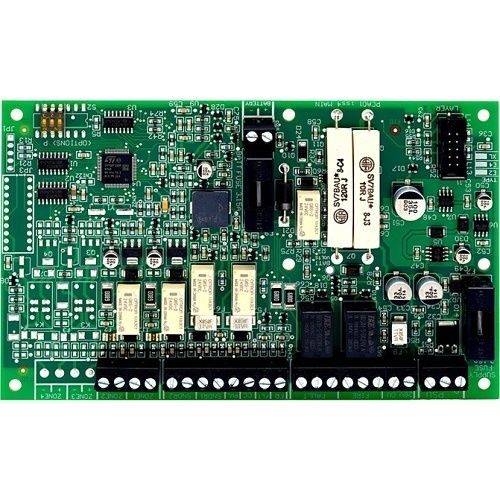

Haes TPCA01-E4 Eclipse 4-Zone Panel Main PCB
SKU: TPCA01-E4Brand: HAES Technologies
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Haes TPCA01-E4 Eclipse 4-Zone Panel Main PCB
£148.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 4-Zone Master PCB board
- Power supply voltage control line, for temperature compensation control
- 28VDC supply input, diode protected for reversal and independent short circuit, maximum current 3A
- 28VDC supply output for fire alarm accessory relays etc, maximum continuous use 400mA fused at 500mA (resettable fuse
- Fire relay contact, clean C/O, maximum 3A at 30VDC, unfused
- Maintained fault relay contact, clean C/O, maximum 3A at 30VDC, unfused
Frequently bought together
HAES Technologies
Haes TPCA01-X2 XLEN 2-Zone Main Processor and Circuit Board
Sale price£136.95
In stock
HAES Technologies
Haes XLEN 4 Zone Main Processor & Circuit Board
Sale price£152.55
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
HAES Technologies
Haes XLEN LED Display & Controls Board
Sale price£64.55
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
HAES Technologies
Haes XLEN Repeater Main Processor & Circuit Board
Sale price£88.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The TPCA01-E4MAR is a Master PCB for Esento Marine 4-zone panels. Zones 1-4 are Fire alarm zone circuits. Conventionally wired detection circuit. Maximum 32 detectors per zone.
Main Features
- 4-Zone Master PCB board
- Power supply voltage control line, for temperature compensation control
- 28VDC supply input, diode protected for reversal and independent short circuit, maximum current 3A
- 28VDC supply output for fire alarm accessory relays etc, maximum continuous use 400mA fused at 500mA (resettable fuse
- Fire relay contact, clean C/O, maximum 3A at 30VDC, unfused
- Maintained fault relay contact, clean C/O, maximum 3A at 30VDC, unfused
Specifications
| Input Voltage | 28V DC |
|---|---|
| Limited Warranty | 3-Year |
| Product Type | Alarm Communicator/Control Panel |
| Colour | Silver |
| Manufacturer | Haes Technologies |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Haes TPCA01-E4 Eclipse 4-Zone Panel Main PCB Product datasheet · TPCA01-E4 · PDF Open datasheet
