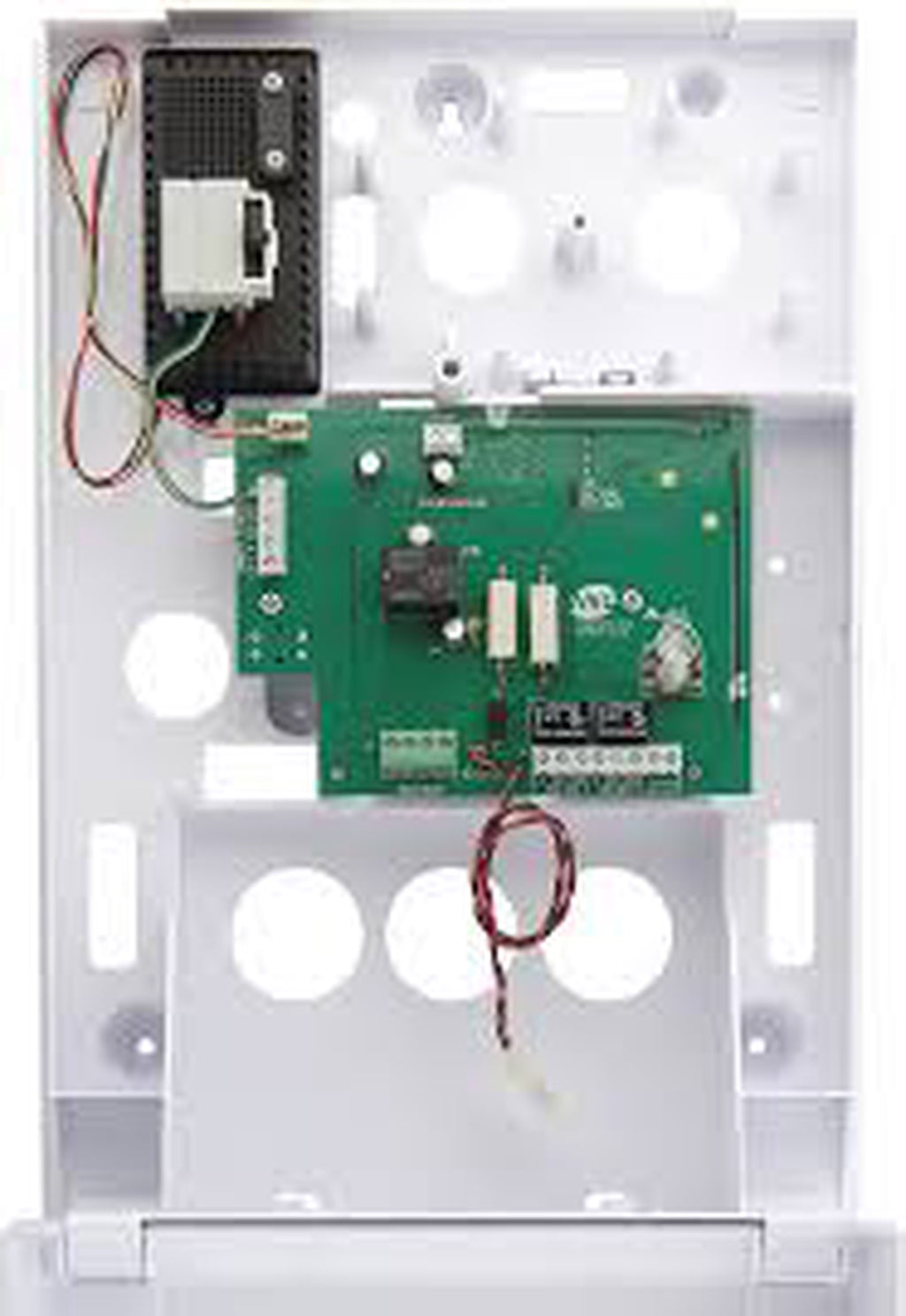

The RF-SmartPSU power supply is designed to the EN 50131-6 standard and delivers 2A at a nominal 12Vdc. It can be installed either as a standalone unit or integrated to HKC SecureWave SW-10270 Panel via an RF (868MHz) link or alternatively, via the keypad bus. Key Features Delivers 2A current Compatible with SW-10270 Panel Complete RF-Expander functionality Comms via SecureWave wireless technology or comms via panel's keypad bus 2 programmable changeover relay outputs Fuse monitoring Tamper monitoring Automatic battery test Engineer battery test Battery current monitoring 7Ah battery Mains fail detect System overview facility Buzzer to locate Polycarbonate box with hinged door Mains: 230Vac (205 - 255Vac), 50Hz Output: 13.6Vdc (13.3 - 13.9Vdc) Max. ripple: 450mV peak to peak Temperature: -10 to +50°C Weight: 1,300g Size: 360mm x 236mm x 90mm EN 50131-6 Type A, Grade 2, Class II
