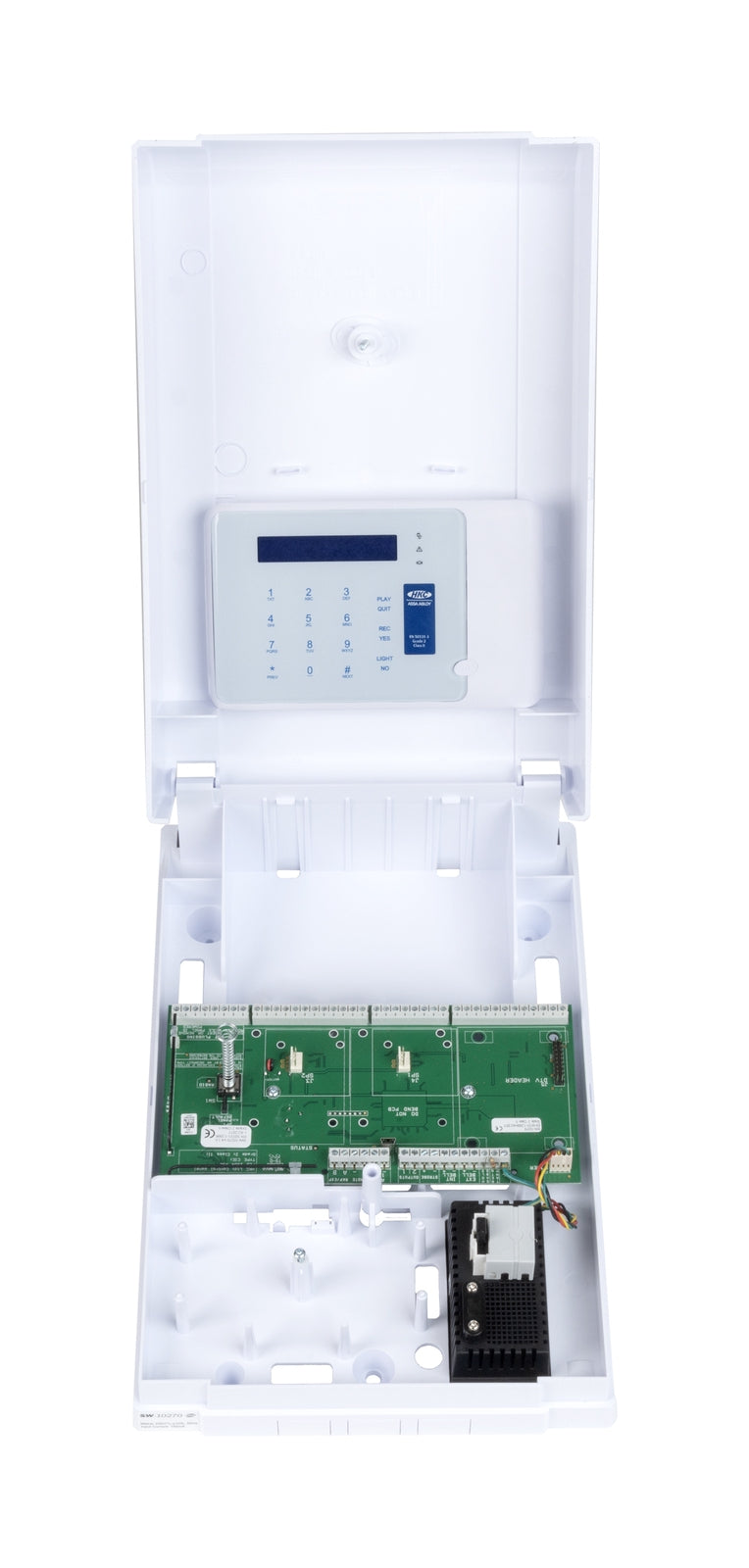

Two-way wireless control panels with additional wired zones giving you total flexibility without compromise. The panels can communicate with a complete suite of devices including wireless PIRs, Dual Tech’s, Inertia Sensors, Magnetic Contacts, Keypads, Panic Buttons, Key-fobs, Smoke Detectors, PIR-Cameras, Internal & External Sirens and more besides. With both horizontal and vertical antennas you will be pleasantly surprised by its excellent RF range. Features: 200 x two-way wireless detectors* 2 two-way wireless Keypads* 10 two-way wireless Internal Sirens* 10 two-way wireless External Sirens* 15 RF-Expanders 64 two-way wireless Key-fobs* 176 wired zones (with ID sensors/modules) 270 wired/wireless zones* Main panel comes with 10 on-board zones 8-way block system with 1 common area 8 x wired keypads & 13 x 10-Zone expanders All expander zones fully analysed 64 users 3 SmartLink700 remote users Up to 231 programmable outputs Output Mapping 999 event engineer log Plug-on communication modules supporting SecureComm and HKC App Modules also support IP Reporting 2 serial ports and 1 USB (mini B) port Plug-on Digi supporting SMS & Voice Messaging BS8243 and PD6662 Compliant Mains: 230Vac +/- 10%, 50Hz Output: 13.7Vdc +/- 0.2V Current Consumption: 75mA Current: 1.5A Temperature: -10 to +40°C Weight: 1,560g Size: 360mm x 236mm x 87mm EN 50131-1: Grade 2, Class II * Up to 200 wireless devices in total with RF-Expanders
