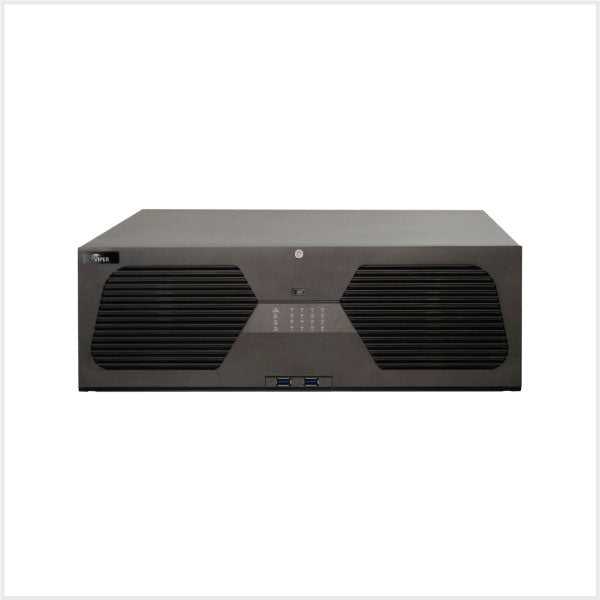

Viper 128CH Deep-Learning AI NVR

Video Compression H.265S / H.265+ / H.265 / H.264 IP Video Input 128CH IPC Input Resolution 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080P Network Bandwidth Incoming: 768Mbps / Outgoing: 768Mbps Output When HDMI 1 output is 8K, HDMI 2 is temporarily unavailable and HDMI 3 outputs at a maximum of 1080P HDMI 1: 7680 x 4320; 3840 x 2160; 1920 x 1080; 1280 x 1024; 1024 x 768 HDMI 2: 3840 x 2160; 1920 x 1080; 1280 x 1024; 1024 x 768 HDMI 3: 3840 x 2160; 1920 x 1080; 1280 x 1024; 1024 x 768 HDMI 4: 1920 x 1080; 1280 x 1024; 1024 x 768 VGA : 1920 x 1080; 1280 x 1024; 1024 x 768 Multi-Screen Display (Main) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64 Simultaneous Playback Max. 16CH Search Time Slice; Time; Event; Tag; Smart Search (see below) Smart Search Colour coding to display camera footage across selected periods of time. Functions Play; Pause; FF; FB; Digital Zoom Events (continued) .m4a5o2l-s{padding-top:1rem !important;} Face Detection Face Detection Performance (AI by IPC) 128CH Face Detection Performance (AI by Device) 4CH (4MP Only) Face Recognition Face Match Performance 16CH Comparison Capability 36 Images (per second) Face Image Database 32 Libraries; 10,000 Face Images Face Image Search Supported Database Management Add; Modify; Delete; Search Face Images Face Image Adding Through Web, App or External Import Face Image Comparison Supports Allow List, Block List & Stranger Match Alarm Track Track Display on Map Statistical Graph Bar Graph Statistical Mode By Day; Week; Month; Quarter; Custom Period System & Hardware .o6jp6nt-s{padding-top:1rem !important;} Network Interface RJ45 x2 (10/100/1000Mbps) Protocol TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP Client Connection Max. 128 Users Access OS Embedded Linux Video Management Software (PC) NVMS 2.1.1 (Standard or Professional) Audio Network Input 128CH IPC Input Audio Local Input RCA x1 (2-Way Audio) Audio Local Output RCA x1 HDMI Audio Output Supported Compression G.711(U/A) Events .eqalsfe-s{padding-top:1rem !important;} Alarm Type Manual, Sensor, Motion, Exception & Smart Events Alarm Input 24CH IPC Alarm Output Alarm Output 8CH IPC Alarm Output Alarm Trigger Recording, Snapshot, Buzzer, Preset, Email Perimeter Protection (People & Vehicle Classification) 128CH (AI by IPC); 8CH (1080P Only, AI by Device) Video Metadata People & Vehicle Classification Fisheye Fisheye Dewarping via NVMS or SuperLive Plus App Plate Detection Supported (AI by IPC) System & Hardware .sm8tp57-s{padding-top:1rem !important;} Mobile App (iOS or Android) SuperLive Plus HDD SATA SATA x16 (Max. 10TB each) RAID RAID 0, 1, 5, 6 & 10 E-SATA x2 USB USB 3.0 x1, USB 2.0 x3 RS232 Supported RS485 Supported (Full-Duplex) with PTZ or Keyboard Power Supply ATX275W Power Consumption < 50W (without HDD) Operating Environment Temperature: -10°C to +50°C; Humidity: Less than 90% (non-condensing) Dimensions 437mm x 483mm x 143mm Certificate UKCA, CE, FCC, PSTI 2023, RoHS, WEEE, REACH (EC1907/2006) Storage Options .pp01ns3-s{padding-top:1rem !important;} Barebones Code: VIPDL-NVR-AI2-128BB 1TB Code: VIPDL-NVR-AI2-128-1TB 2TB Code: VIPDL-NVR-AI2-128-2TB 4TB Code: VIPDL-NVR-AI2-128-4TB 6TB Code: VIPDL-NVR-AI2-128-6TB 8TB Code: VIPDL-NVR-AI2-128-8TB 10TB Code: VIPDL-NVR-AI2-128-10TB 12TB Code: VIPDL-NVR-AI2-128-12TB 16TB Code: VIPDL-NVR-AI2-128-16TB 20TB Code: VIPDL-NVR-AI2-128-20TB 24TB Code: VIPDL-NVR-AI2-128-24TB 30TB Code: VIPDL-NVR-AI2-128-30TB
