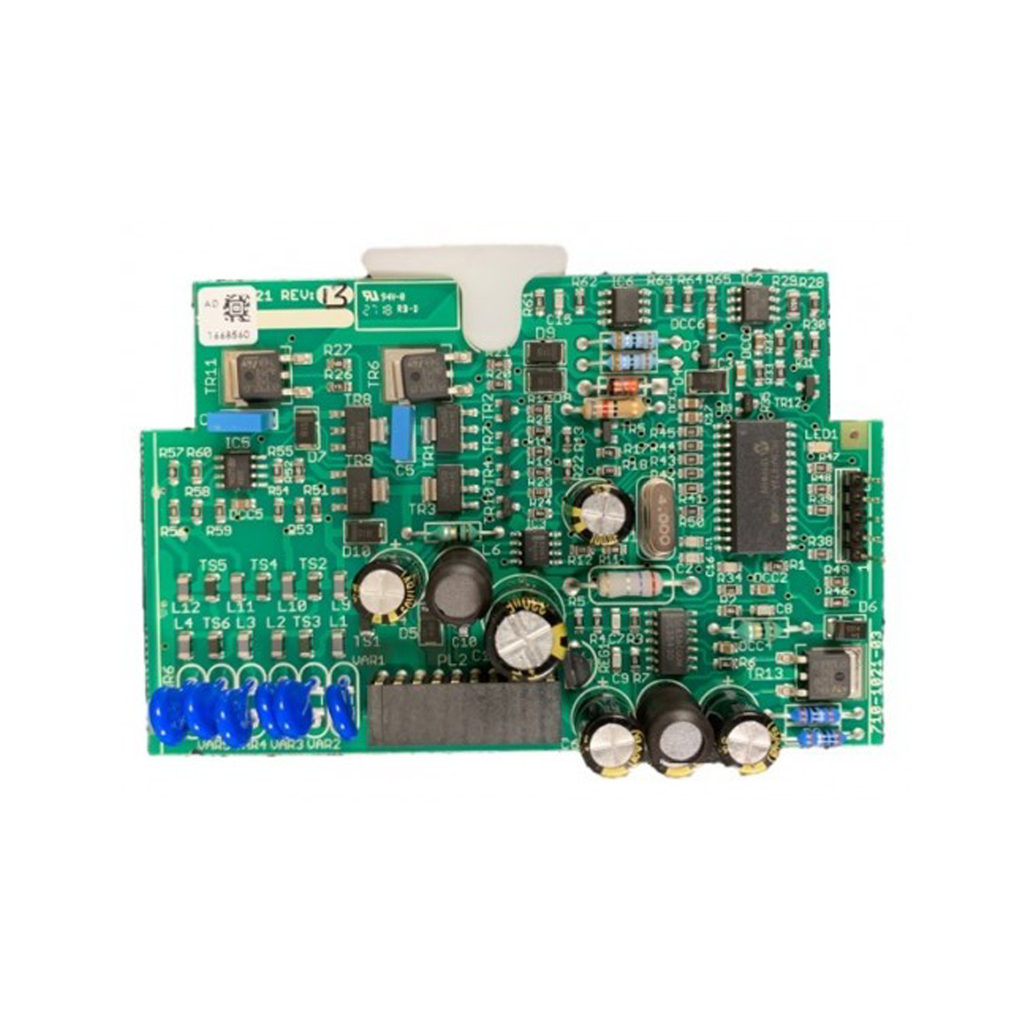

The Advanced MXP-002 is a loop driver card for the MxPro 4 range of analogue addressable fire alarm control panels, such as the MX-4200 and MX-4400. It provides control of and connection to a detector loop, and supports both Apollo and Hochiki protocols.
Key features
- For MxPro 4 analogue addressable panels
- Supports Apollo Discovery and XP95, and Hochiki ESP protocols
- Provides control and connection for one detector loop
Technical specifications
-
Part number: MXP-002
-
Dimensions (W x L): 101.6 x 65.4mm
-
Operating voltage: 18 to 32V
-
Max. current per loop, quiescent: 400mA
-
Max. current per loop, in alarm: 500mA
-
Protocols: Apollo Discovery, Apollo XP95, Hochiki ESP
