Name: Belden 1807A B591000 30AWG Coaxial Cable, High Flex S-Video, 75 Ohm, 304.8m (1000')
Brand: Belden
SKU: 1807A B591000
Price: 1104.00 GBP
Availability: InStock

Belden 1807A B591000 30AWG Coaxial Cable, High Flex S-Video, 75 Ohm, 304.8m (1000')

Roll over image to zoom in Click on image to zoom

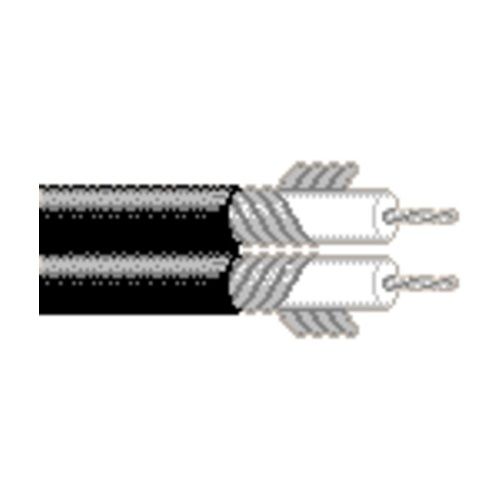

S-Video Cable, 2-30 AWG stranded tinned copper coax, foam HDPE insulation, 90% tinned copper spiral serve shield, PVC jacket.

Main Features

30AWG stranded tinned copper coaxial conductor
Foam HDPE insulation
90% tinned copper spiral serve shield
PVC jacket
75 Ohm impedance
High Flex S-Video cable
Length 304.8m (1000')

Specifications

American Wire Gauge	30AWG
Cable Rating	Eca
Environmental Certification	RoHS; WEEE
Environmentally Friendly	Yes
Impedance	75Ohm
Limited Warranty	10-Year
Material	Foam PE; PVC; Tinned Copper
Number of Conductors	2
Shielding	Yes
Solid or Stranded	Stranded
Cable Style	Ultra-miniature 59
Colour	Black
RoHS Compliant	Compliant
WEEE Compliant	Compliant
