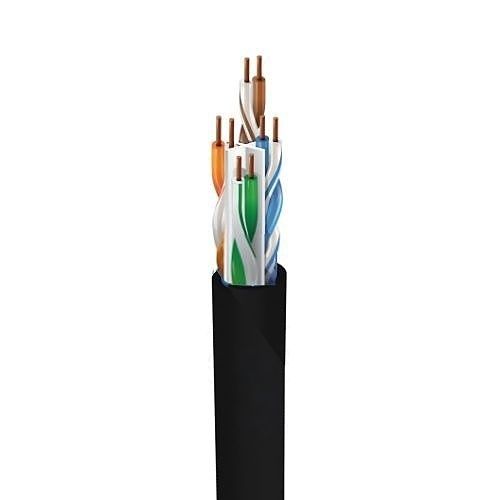

Category 6 Premise Horizontal Cable (250 MHz), 4-Pair, 23AWG solid bare copper conductors, U/UTP, Polyethylene insulation, Outdoor PE jacket, CPR Fca. Suitable as horizontal and building backbone cable; Support current and future Category 6 and 5e applications, such as: 1000Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM, suitable for indoor / outdoor use.
Main Features
72V DC Voltage rating
Operating temperature from -30°C to 60°C
CPR Euroclass Fca
Fully compatible with network devices
Specifications
American Wire Gauge
23AWG
Cable Length
305m
Cable Type
Category 6
CPR Euroclass Rating
Fca
Data Transfer Rate
1Gbps
Device Supported
ATM; Network Device
Features
Attenuation Crosstalk Ratio Far-end (ACR-F); Attenuation to Crosstalk Ratio (ACR); Bendable; Equal Level Far End Crosstalk (ELFEXT); Minimized Near-End Crosstalk (NEXT); PoE; Power Sum Attenuation to Crosstalk Ratio (PSACR); Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF); Power-sum Equal Level Far-End Crosstalk (PSELFEXT); Power-sum Near End Crosstalk (PSNEXT); Sunlight Resistant
