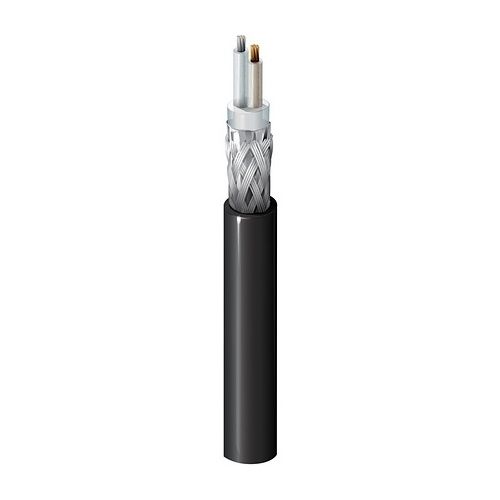

Name: Belden 9207NH.00305 20/1 Twinax 100 Ohms Cable, Str-1c TC/1c BC, Duofoil, PVC Jacket, CMG, 305m Reel, Black
Brand: Belden
SKU: 9207NH.00305
Price: 1630.80 GBP
Availability: InStock

Belden 9207NH.00305 20/1 Twinax 100 Ohms Cable, Str-1c TC/1c BC, Duofoil, PVC Jacket, CMG, 305m Reel, Black

Roll over image to zoom in Click on image to zoom

20AWG Stranded (7x28) one tinned copper conductor, one bare copper conductor, polyethylene insulation, polyethylene inner jacket, Duofoil (100% coverage) plus a tinned copper braid shield (85% coverage), LSZH outer jacket, flame resistance IEC 60332-3C.

Main Features

20/1 Twinax 100 Ohms Cable
Stranded 20AWG (7x28) Conductors
Tinned and Bare Copper Conductors
Polyethylene Insulation and Inner Jacket
Duofoil Shield with 100% Coverage
Tinned Copper Braid Shield (85% Coverage)
LSZH Outer Jacket for Safety

Specifications

American Wire Gauge	20AWG
Cable Length	305m
Cable Type	Twinaxial
CPR Euroclass Rating	Eca
Device Supported	Computer
Impedance	100Ohm
Insulation Material	PE
Jacket Type	Halogen-Free Jacket
Limited Warranty	10-Year
Material	Bare Copper; Tinned Copper
Number of Conductors	2
Number of Pairs	1
Package Type	Reel/Spool
Product Series	Coaxial
Product Type	Fieldbus Cable
Shielding	Yes
Solid or Stranded	Stranded
Colour	Black
Manufacturer	Belden CDT, Inc
RoHS Compliant	Compliant
WEEE Compliant	Compliant
