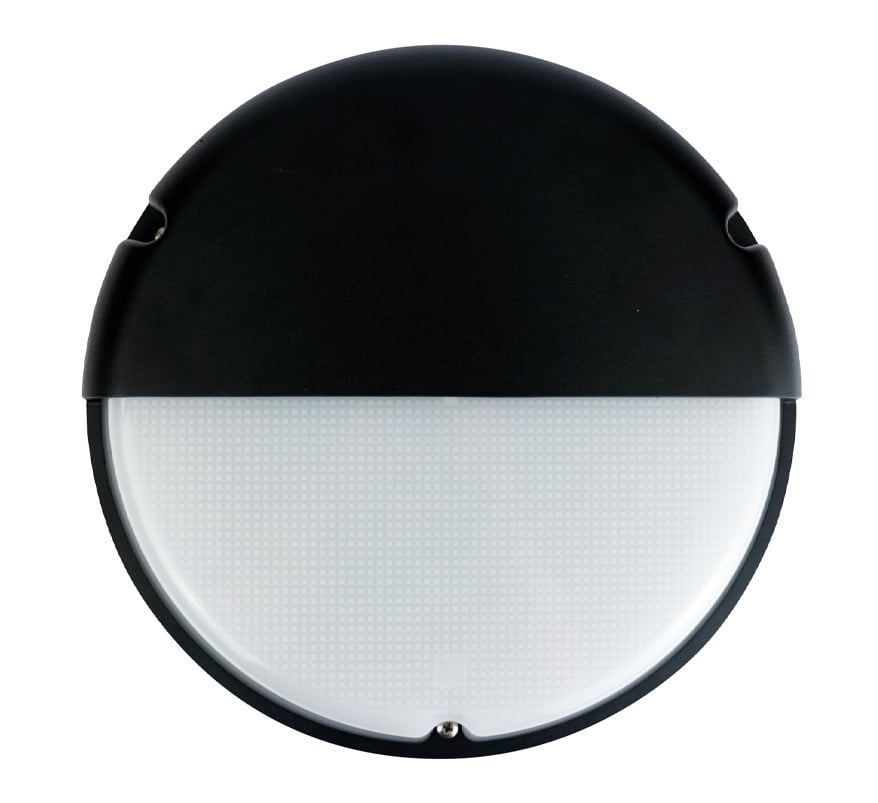

The BLE DORE EL-120801-M3-MW is an IP65, weatherproof LED amenity light with a 3-hour emergency function from a 6.4V LiFePO4 battery and a built-in microwave presence sensor. It is a versatile, easy-to-install and easy-to-maintain fitting for a wide range of applications, with a black finish.
Key features
- High-quality die-cast aluminium base and hood
- Impact-modified polycarbonate opal diffuser
- Removable eyelid for flexibility during installation
- Reduced power consumption
- IP65 rated and weatherproof
- Integral microwave sensor for presence detection
Technical specifications
- Part number: EL-120801-M3-MW
- Supply: 220-240V AC, 50Hz
- Power: 15W
- Power factor: 0.94
- Electrical class: Class I
- Light source: LED
- Colour temperature: 3CCT
- CRI: 70
- Beam angle: 110°
- Mains lumen output: 550 / 1090lm (eyelid/non-eyelid)
- Emergency lumen output: 90 / 180lm (eyelid/non-eyelid)
- Emergency duration: 3 hours
- Testing: Manual
- Battery: LiFePO4 6.4V, 1.0Ah, replaceable
- Recharge time: 24 hours
- Sensor: Microwave Sensor
- Maximum mounting height: 3.5M
- Detection area: 8M at 2.5M High
- Daylight threshold: 10 lux to 500 lux
- IP rating: IP65
- IK rating: IK10
- Housing: Die-cast aluminium
- Diffuser: opal polycarbonate
- Colour: Black
- Mounting: Surface
- Dimensions: Ø 330mm, D 97mm
- Weight: 3208g
- Operating temperature: 0 to +40°C
- Lamp life: 50,000 hours
- Product warranty: 10 years
- Battery warranty: 10 years
- Manufactured in accordance with: BS EN 60598-1, BS EN 60598-2-22
- Marking: CE and UKCA
