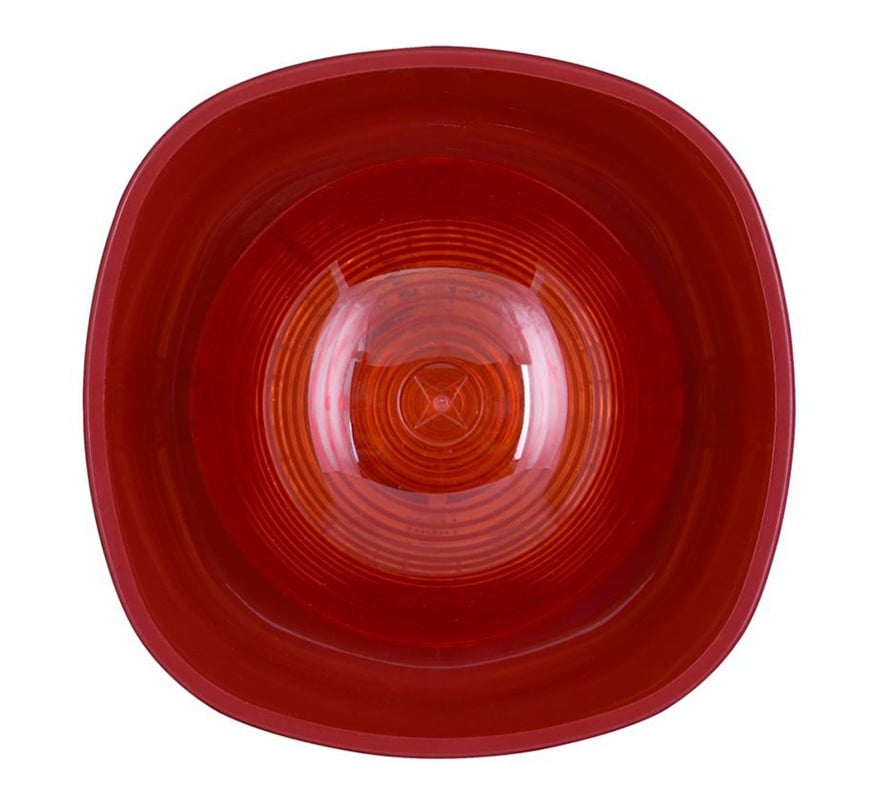

The Eaton Cooper CASB383 is an intelligent addressable wall sounder beacon for indoor use, compatible with Eaton's Cooper range of intelligent addressable fire systems.
It combines a high-output sounder with a red LED beacon for audible and visual alarm signalling. Tone and volume are set from the fire control panel, so there is no need to access the device to change them. It is intended for indication purposes where EN 54-23 is not a requirement.
Key features
- Loop powered and soft addressed, with an integral short circuit isolator
- High-efficiency sounder with low current consumption
- High-output LED beacon with red lens
- Selectable tones and adjustable volume, both controlled by the panel
- First-fix base with simple clip-fixing assembly; rear or side cable entry
- Weatherproof IP66 version also available (CASB383WP)
Technical specifications
- Part number: CASB383 (internal wall sounder beacon)
- Standards: EN 54-3; EN 54-17 short circuit isolator
- Operating voltage: 17 to 32 V DC
- Standby current: < 320 µA
- Sound output (±3 dB): low 92 dB at < 6.5 mA; medium 97 dB at < 7.5 mA; high 100 dB at < 8.5 mA
- Tones: continuous 984 Hz; pulsed 984 Hz at 1 Hz; two tone 644/984 Hz at 1 Hz; slow whoop 500 to 1200 Hz in 3.5 s / 0.5 s gap
- Operating temperature: -10°C to +55°C
- Humidity: 0 to 95% RH (non-condensing)
- Construction: PC/ABS, red body, red lens
- Dimensions (H x W x D): 105 x 105 x 95 mm
- Weight: 0.21 kg
- Ingress protection: IP42
- Cable: 0.5 to 2.5 mm², FIRETUF, FP200 or MICC
