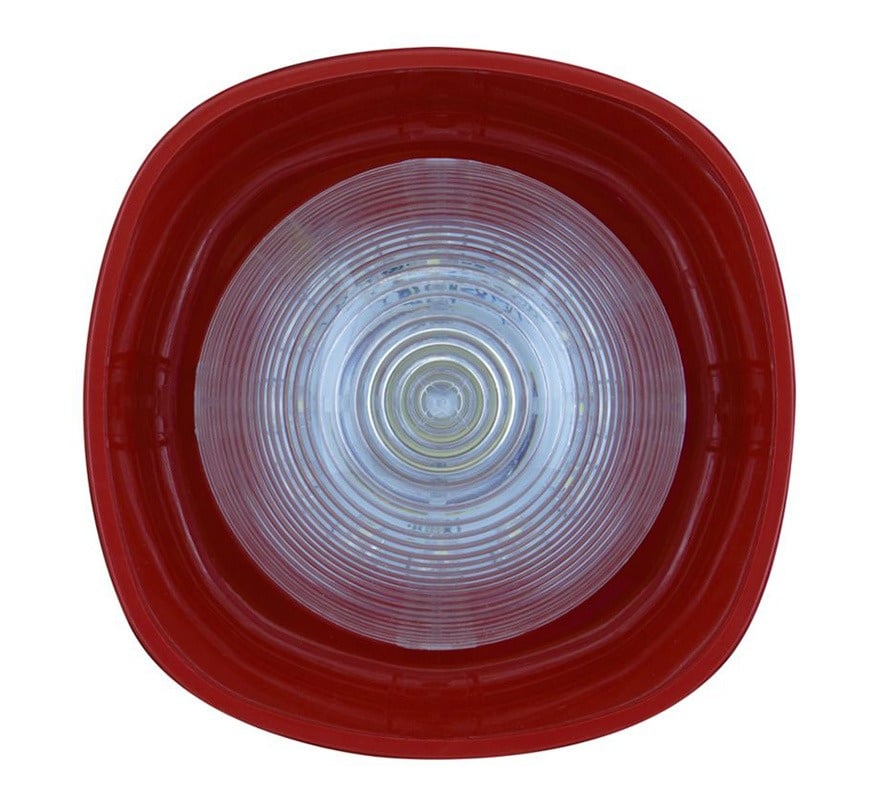

The Eaton Cooper CASB393 is an intelligent addressable open class wall sounder visual alarm device (VAD) for Eaton intelligent addressable fire alarm systems. It combines the high sound output of Eaton's wall sounders with a stronger LED to meet EN 54-23, and gives a white flash only.
Open class functionality allows the VAD to be installed in open areas such as warehouses or airport terminals.
Key features
- Open class EN 54-23 VAD with white flash
- Certified to EN 54-3 (sounders), EN 54-23 (visual alarms) and EN 54-17 (short-circuit isolators)
- Soft addressed on the loop
- Three volume levels, up to 100 dB
- 4 EN certified tones, programmable from the panel
- Low-current 0.5 Hz flash
Technical specifications
- Part number: CASB393
- Nominal voltage: 18 to 28 V DC
- Sound output: 87 dB at less than 8.6 mA (low), 93 dB at less than 10 mA (medium), 100 dB at less than 11 mA (high)
- Sound frequency range: 0.5 to 1.2 kHz
- Flash rate: 0.5 Hz
- Flash colour: white
- Housing: ABS, red
- Ingress protection: IP42
- Operating temperature: −10°C to +55°C
- Humidity: 0 to 95% (non-condensing)
- Cable entry: rear
- Dimensions (H x W x D): 108 x 108 x 96 mm
- Weight: 0.191 kg
