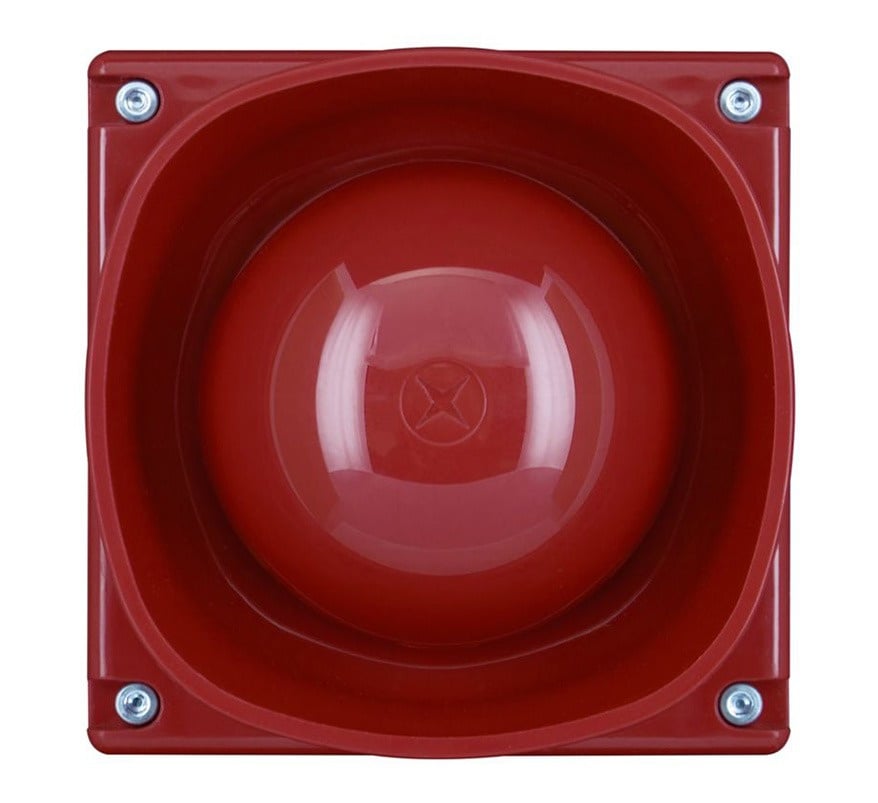

The Eaton Cooper CAS381WP is an IP66-rated weatherproof intelligent addressable wall sounder for Eaton intelligent addressable fire alarm systems. It suits external and wash-down areas.
The sounder is loop powered and soft addressed, has a built-in short-circuit isolator, and its tone and volume are set from the fire control panel, so there is no need to access the sounder to change them. An internal version (CAS381) is also available.
Key features
- IP66 rated for outdoor and wash-down areas
- Loop powered and soft addressed
- Integral short-circuit isolator
- Tone and volume selected by the control panel
- High-efficiency design: good sound output with low current consumption
- First-fix base; rear or side cable entry
- Body fixes to the base with 4 Allen head screws (supplied)
Technical specifications
- Part number: CAS381WP
- Standard: EN 54-3
- Operating voltage: 17 to 32 V DC
- Standby current: less than 320 µA
- Tones (set by panel): continuous 984 Hz; pulsed 984 Hz/0 Hz at 1 Hz; two-tone 644/984 Hz at 1 Hz; slow whoop 500 to 1200 Hz in 3.5 s with 0.5 s gap
- Sound output (±3 dB, set by panel): 87 dB at less than 2 mA (low), 93 dB at less than 3 mA (medium), 100 dB at less than 6 mA (high)
- Operating temperature: −10°C to +55°C
- Humidity: 0 to 95% RH (non-condensing)
- Construction: PC/ABS, red
- Dimensions (H x W x D): 108 x 108 x 103 mm
- Weight: 0.57 kg
- Ingress protection: IP66
- Cable entry: rear or side
