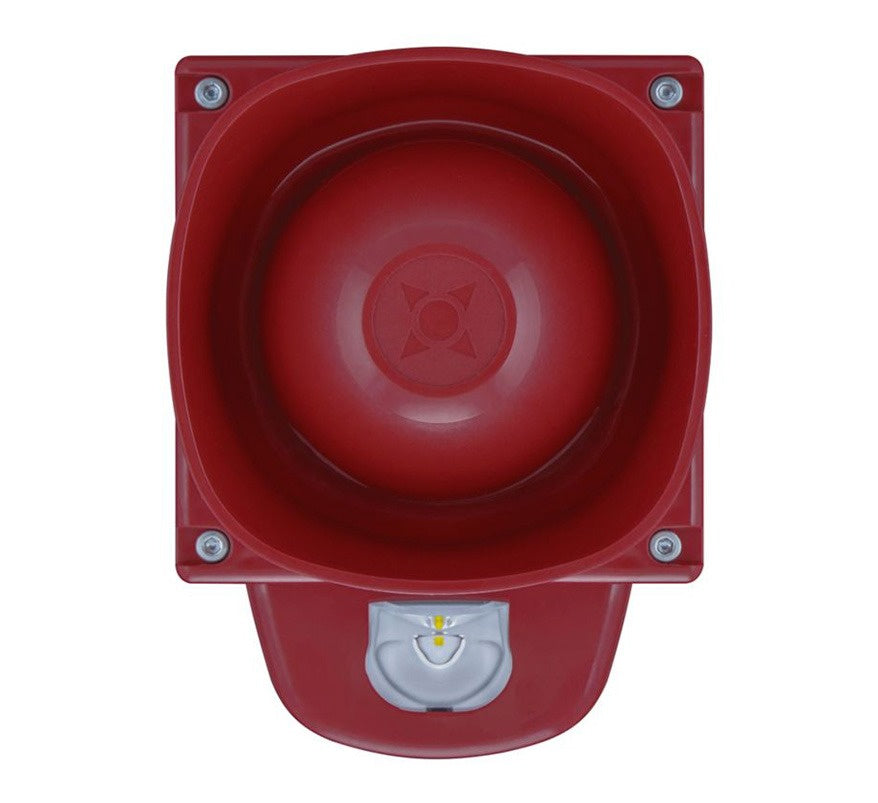

The Eaton Cooper CASB483WP is an intelligent addressable wall sounder visual alarm device (VAD) with a red body and red LED flash, in a weatherproof IP66 version for wet and outdoor environments. It combines Eaton's proven wall sounder with an EN 54-23 compliant beacon to give clear audible and visual fire warning on Eaton intelligent addressable fire alarm systems.
It is suitable for fire notification in commercial buildings.
Key features
- Compliant with EN 54-23
- LED technology for long service life and low current consumption
- Coverage switch reduces power consumption by up to 50%
- Flash rate can be reduced from 1 Hz to 0.5 Hz, cutting power consumption by up to 50%
- Proven, durable sounder design
- Eaton's patented lens design for optimised light dispersal
Technical specifications
- Part number: CASB483WP (Eaton catalogue no. 8500115FULL-0201X)
- Mounting: wall
- Voltage: 19 to 30 V
- Standby current: less than 330 μA
- Operating current: 13.4 to 47.5 mA (depending on setting and LED colour)
- Sound output: 99 dB(A), two-tone 644/984 Hz at 1 Hz cycle
- Mounting height: 2.4 m
- Coverage: 7.5 m (switchable to 2.5 m)
- Coverage volume code: W-2.4-7.5 (W-2.4-2.5)
- Flash rate: 0.5 Hz (switchable to 1 Hz)
- Flash colour: red
- Body colour: red
- Ingress protection: IP66
- Operating temperature: −10°C to +55°C (Type A); −25°C to +70°C (Type B)
- Dimensions (H x W x D): 151 x 111 x 100 mm
