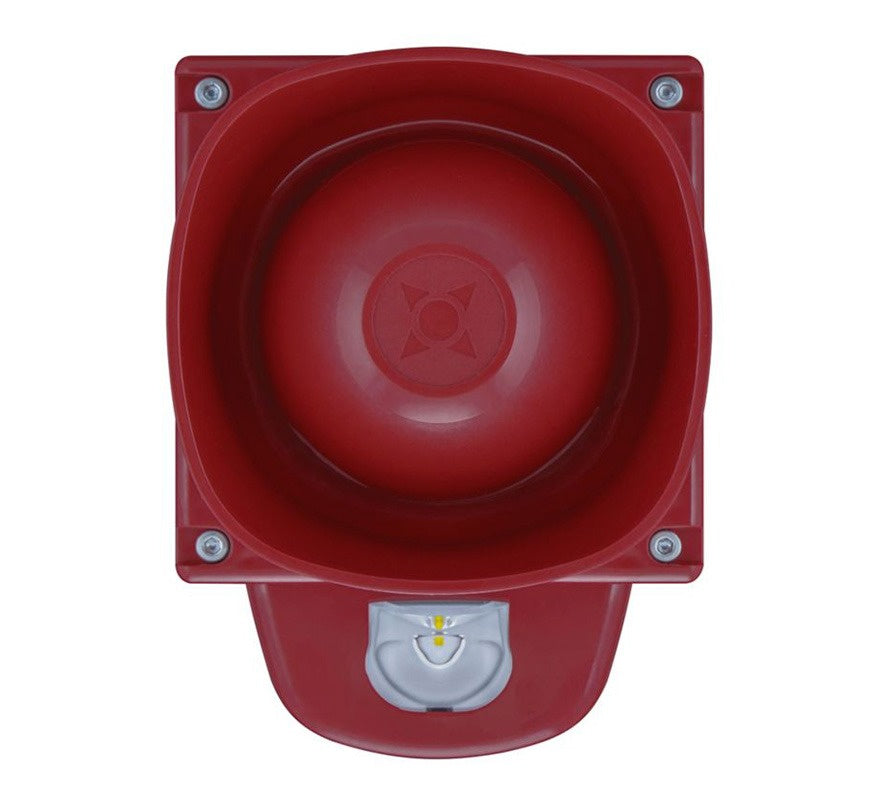

The Eaton Cooper CASB493WP is a weatherproof intelligent addressable wall sounder visual alarm device (VAD) with white flash, for Eaton's intelligent addressable fire systems.
It combines a proven sounder with an EN 54-23 compliant LED beacon for clear audible and visual signalling. With IP66 ingress protection it is suitable for wet and outdoor environments.
Key features
- EN 54-23 compliant visual alarm device with EN 54-3 sounder
- IP66 weatherproof housing
- LED technology for long service life and low current consumption
- Coverage switch: reduce coverage to save up to 50% power
- Flash rate switchable between 0.5 Hz and 1 Hz
- Eaton patented lens design to optimise light dispersal
- Soft addressed, with integral short circuit isolator
Technical specifications
- Part number: CASB493WP (Eaton code 8500114FULL-0200X)
- Mounting: wall, 2.4 m mounting height
- Coverage (white flash): W-2.4-7.2 (switchable to W-2.4-2.1)
- Voltage: 19 to 30 V
- Standby current: < 330 µA
- Operating current: 13.4 to 47.5 mA (depending on setting)
- Flash rate: 0.5 Hz (switchable to 1 Hz)
- Sound output: 99 dB(A), two tone 644/984 Hz at 1 Hz
- Operating temperature: Type B, -25°C to 70°C
- Standards: EN 54-3, EN 54-23; EN 54-17 short circuit isolator
- Ingress protection: IP66
- Body colour: red; flash colour: white
- Dimensions (H x W x D): 151 x 111 x 100 mm
- Weight: 0.332 kg
