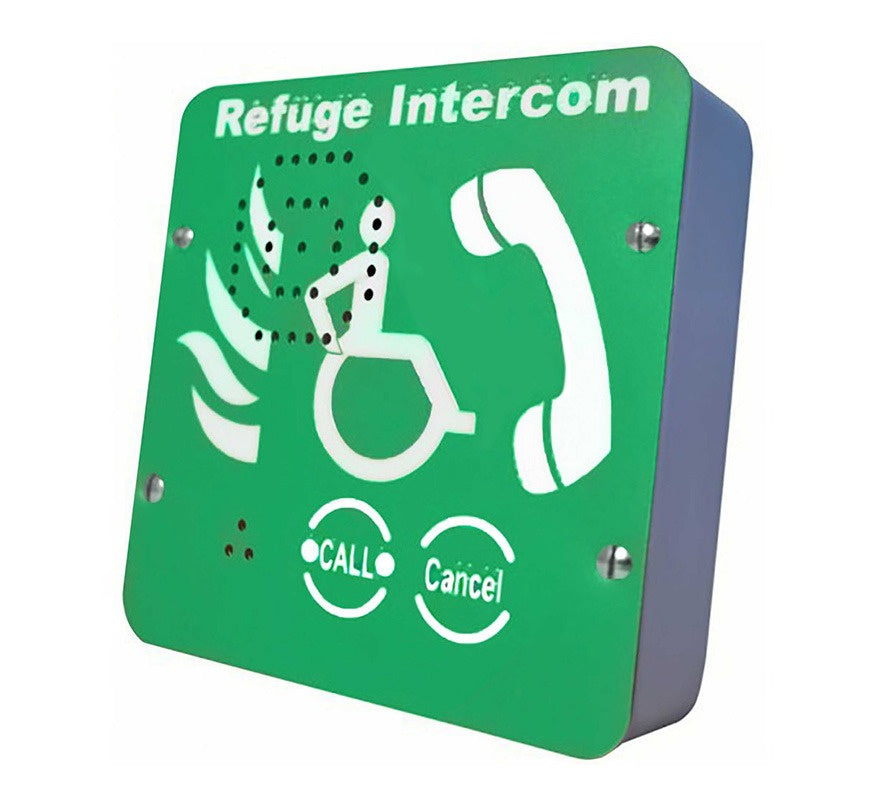

The Eaton VoCALL CFVCSHFG is an analogue Type B outstation in green, for surface mounting. Type B outstations are defined in BS 5839-9 and are used as disabled refuge call points, giving full duplex, two-way voice communication with the VoCALL master unit.
The unit is compact and easy to use, with a press-to-call button, a cancel button, a high volume ringer, status LEDs and tactile Braille signage. It can be used on all VoCALL systems and is designed for multi-disability users, with high contrast signage in line with RNIB guidelines and an induction loop coil for hearing aid users. BS 5839-9 recommends Type B outstations only where background noise is below 40dBA.
Key features
- Full duplex, two-way voice communication
- Press-to-call and cancel buttons
- High volume ringer
- 2 red status LEDs (flashing for location, solid when in use)
- Induction loop coil (to BS EN 60118-4) for hearing aid users
- Tactile Braille signage and high contrast labelling
- 20mm cable glands; top, rear or bottom cable entry
- Compatible with all VoCALL systems
Technical specifications
-
Catalogue number: CFVCSHFG
-
Type: Analogue Type B outstation, surface mount
-
Colour: Green
-
Construction: Zintec, powder coated
-
Cable: 2 core 1mm² or 1.5mm² fire rated, up to 500m
-
Back box dimensions (H x W x D): 135 x 135 x 42mm
-
Weight: 1.105kg
-
Mounting height: 1000mm from finished floor level to centre of unit
