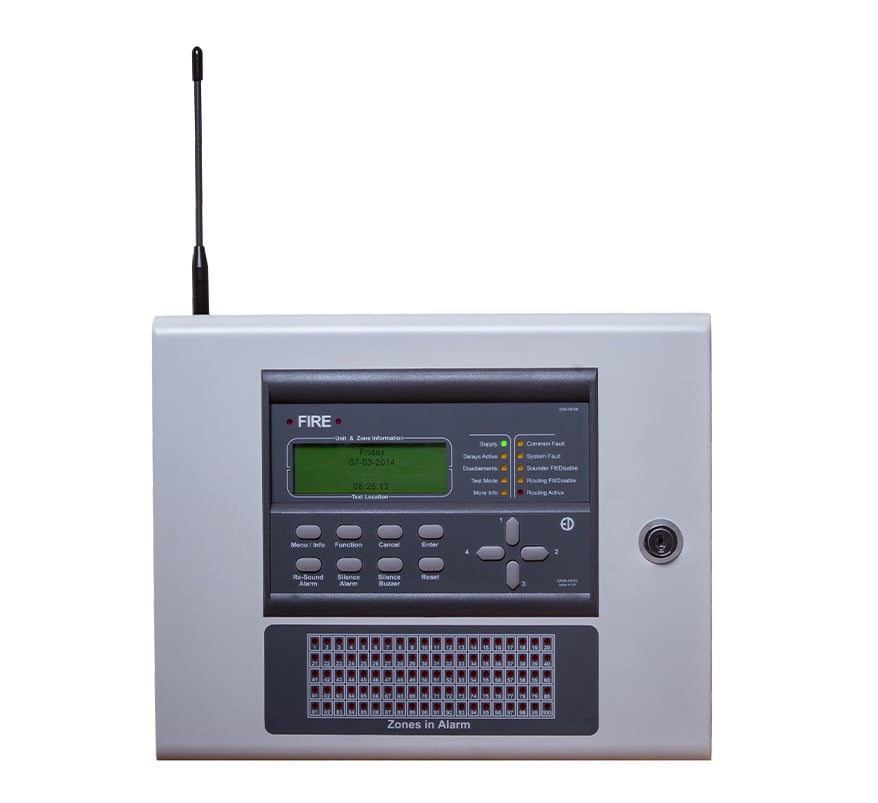

The Electro Detectors EDA-Z5100 is a 100 zone radio fire alarm control panel for the Zerio Plus wireless system, suitable for larger commercial and residential premises. Set-up, device programming and commissioning are all done from the panel itself, with automatic set-up and learn modes, so no additional programming equipment is needed.
Key features
- Fully addressable for up to 240 Zerio Plus devices (detectors, call points, sounders, transmitters and I/O units)
- 100 zones with individual red zone-in-alarm LEDs
- 4-line backlit LCD with location text for fire and fault messages
- Programme from the 12-button keypad, a USB QWERTY keyboard or a USB memory stick prepared on a PC
- Configuration backed up on a removable memory card
- Sophisticated cause and effects and built-in HMO options
- Up to 7 repeater/booster panels to extend radio range
- 5 access levels with pre-alarm and dirty-head warnings
- Certified to EN 54-2, EN 54-4 and EN 54-25; complies with BS 5839-1
Technical specifications
- Zones: 100
- Maximum devices: 240
- Maximum repeater panels: 7; maximum antennas: 15
- Mains supply: 230V 50Hz, 0.3A max
- Standby battery: 1 x 12V 7.0Ah sealed lead acid, giving 72 hours standby
- Relays: 4 programmable (fire and fault clean contacts, fault-safe clean contact, sounder circuit and fire routing 10-18V 500mA with 4k7Ω EOL)
- Inputs: 2 wired monitored circuits (4k7Ω EOL, 470Ω alarm load)
- Event log: 1000 events
- Radio: 868MHz (868.025 to 868.575MHz), 2-GFSK, output power <25mW ERP, 12 channels
- Dimensions (W x H x D, excluding antenna): 275 x 220 x 85mm
- Weight (excluding battery): 4kg
- Operating temperature: -5°C to +40°C; IP30
- Compatible with Zerio Plus products only
