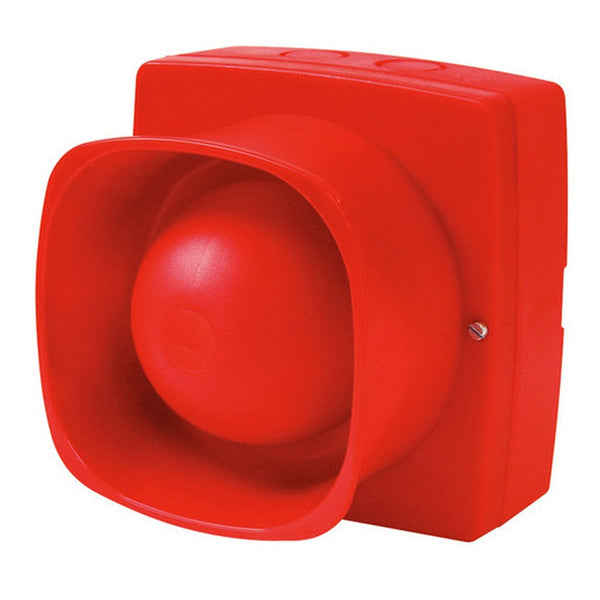

The Fike Sita Hipoint (323-0001) is an addressable sounder for Fike Duonet, Quadnet and CIE-A-200/400 addressable fire systems, rated IP55 for indoor or outdoor use.
It gives audible warning when the system goes into alarm and connects directly to the addressable loop.
Key features
- Addressable sounder that connects directly to the loop, with built-in short circuit isolator
- 7 sound patterns (SP1 to SP7) plus sounder off (SP0), including UK alert, UK evacuate and French warble, with low, medium and high volume, configured with the panel OSP software
- Soft addressed: address allocated automatically by the control panel during initialisation
- IP55 housing with rubber seal; front fixed to the back box with four screws
Technical specifications
- Part number: 323-0001 (Sita Hipoint)
- Standards: EN 54-3, EN 54-17
- Dimensions: 123 x 130 x 103 mm
- Sound output: low 65+ dB(A), medium 84 dB(A), high 87 dB(A)
- Voltage range (loop): 24 to 42 V DC
- Loop current: quiescent 0.18 mA; alarm low / medium / high 1.73 / 3.84 / 5.36 mA
- DLU rating: 2 / 4 / 5.5 (low / medium / high)
- Operating temperature: -10°C to +50°C
- IP rating: IP55 (not EN 54 compliant at this rating)
- Flammability: UL94-V2
- System compatibility: Duonet and Quadnet V1 onwards; CIE-A-200 V1 onwards
- Cable: 2-core 1.5 mm² screened fire-resistant, wired as a loop (no spurs)
