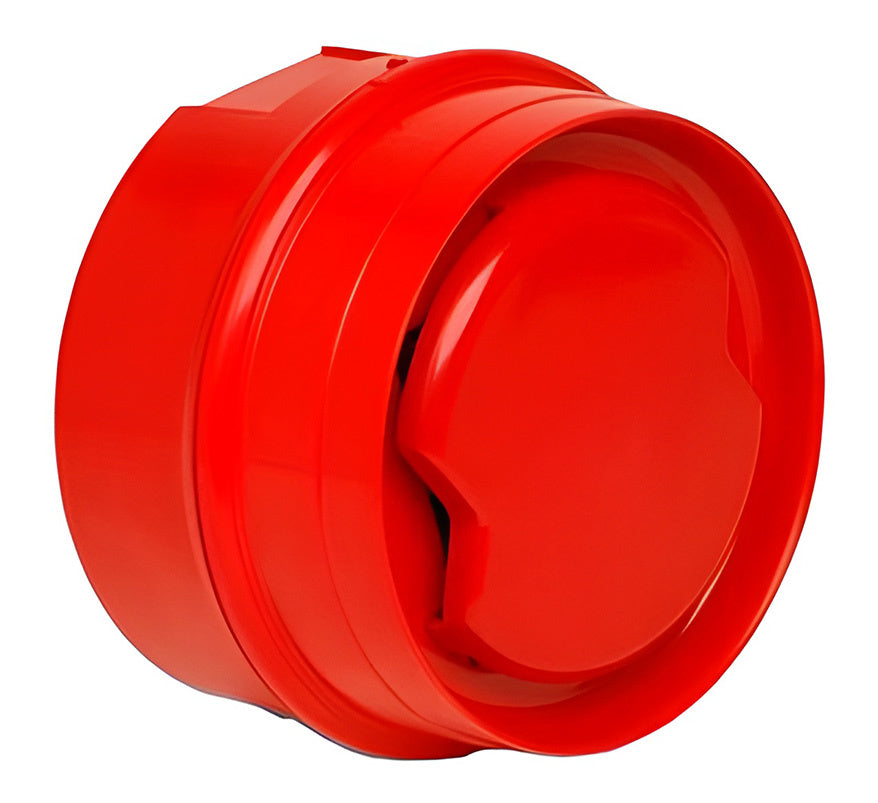

The Fike Sita 326-0001 is an addressable sounder with a low profile base for Fike Duonet, Quadnet and CIE-A-200/400 addressable fire systems.
It gives audible warning when the system goes into alarm and connects directly to the addressable loop.
Key features
- Addressable sounder that connects directly to the loop, with built-in short circuit isolator
- 7 sound patterns (SP1 to SP7) plus sounder off (SP0), including UK alert, UK evacuate and French warble, with low, medium and high volume, configured with the panel OSP software
- Soft addressed: address allocated automatically by the control panel during initialisation
- Low profile red mounting base; the sounder locks to the base and is released with a small tool through the hole in the base
- Also available with a deep base (326-0003)
Technical specifications
- Part number: 326-0001 (Sita Sounder with low profile base)
- Depth including low profile base: 60.5 mm
- Standards: EN 54-3, EN 54-17
- Diameter: 97 mm
- Sound output at 1 m (dual tone): low 65+ dB(A), medium 84 dB(A), high 88 dB(A)
- Voltage range (loop): 24 to 42 V DC
- Loop current: quiescent 0.17 mA; alarm low / medium / high 1.73 / 3.86 / 5.37 mA
- DLU rating: 1.5 (off), 2 / 4 / 5.5 (low / medium / high)
- Operating temperature: -10°C to +50°C
- IP rating: IP21C
- Flammability: UL94-V2
- System compatibility: Duonet and Quadnet V1 onwards; CIE-A-200 V1 onwards
- Cable: 2-core 1.5 mm² screened fire-resistant, wired as a loop (no spurs)
What's in the box
- Sita sounder
- Red low profile mounting base
