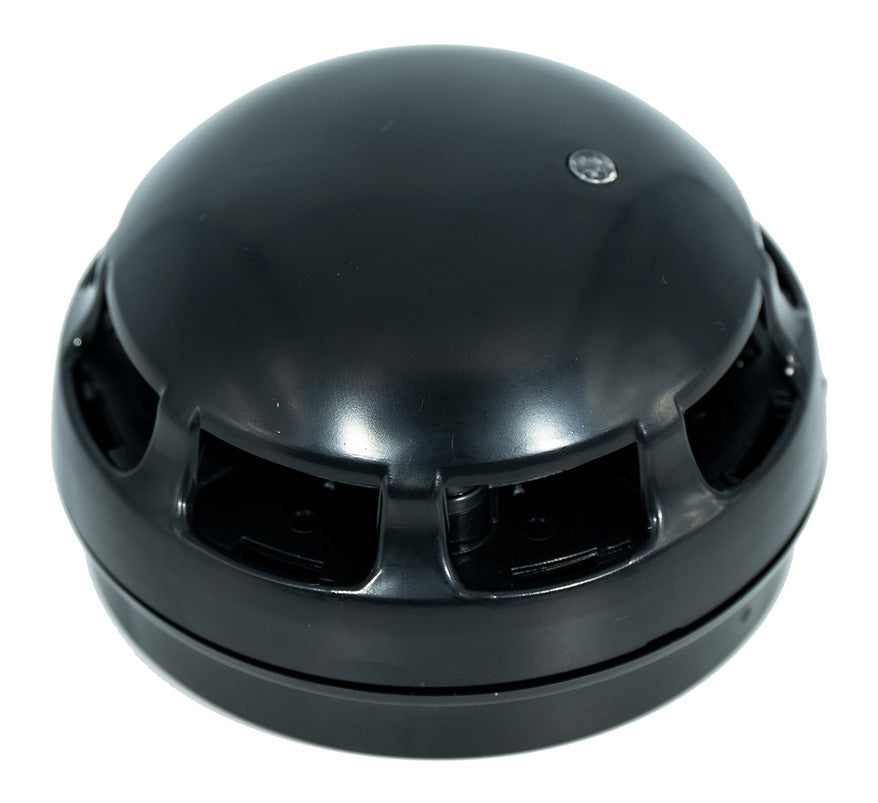

The Fike Sita 205-0003-B is the black version of the Sita addressable multipoint ASD detector, for Fike Duonet, Quadnet and CIE-A-200/400 addressable fire systems.
A photo-electric smoke chamber and thermistor heat sensor let one device be set for smoke, heat or combined detection, so a single detector type suits most applications.
Key features
- Photo-electric smoke chamber plus thermistor heat sensing, configurable for smoke, heat or combined detection
- Smoke modes SM1 to SM3 (thermally enhanced optical) and heat modes HM1 (rate of rise to 58°C), HM2 (fixed 58°C) and HM3 (fixed 90°C), set from the panel or OSP software
- Soft addressed: addresses are allocated automatically by the control panel during initialisation
- Tamper-resistant locking; head removed with the Fike head removal tool (25-0046-201) or keyring (23-0244-510)
- Remote LED output (Fike 600-0092) or auxiliary input/output via the Sita multipoint boxed auxiliary I/O module
- Black finish
Technical specifications
- Part number: 205-0003-B (black); standard Fike part 205-0003 (Sita Multipoint ASD)
- Standards: EN 54-5, EN 54-7, EN 54-17
- Voltage range (loop): 24 to 42 V DC
- Operating temperature: -10°C to +50°C
- IP rating: IP21C
- Diameter: 107 mm
- System compatibility: Duonet, Quadnet and CIE-A-200/400 V1 onwards
- Cable: 2-core 1.5 mm² screened fire-resistant, wired as a loop (no spurs)
- Depth including base: 67 mm
- Loop current: quiescent 0.12 mA; alarm 0.96 mA
- DLU rating: 1
